Reactor Internals Selection & Application Guide: Choosing Wedge Wire Solutions for Radial Flow Reactors

Choosing suitable reactor internals requires matching component design with reactor configuration, flow requirements, catalyst retention and operating conditions. For radial flow reactors, YUBO provides customized wedge wire reactor internals, including center pipes, scallops, distributors and support grids, designed according to customer drawings and application requirements.

For a complete overview, see our main guide: Radial Flow Reactor Internals Design Guide

How to Select Reactor Internals for Radial Flow Reactors?

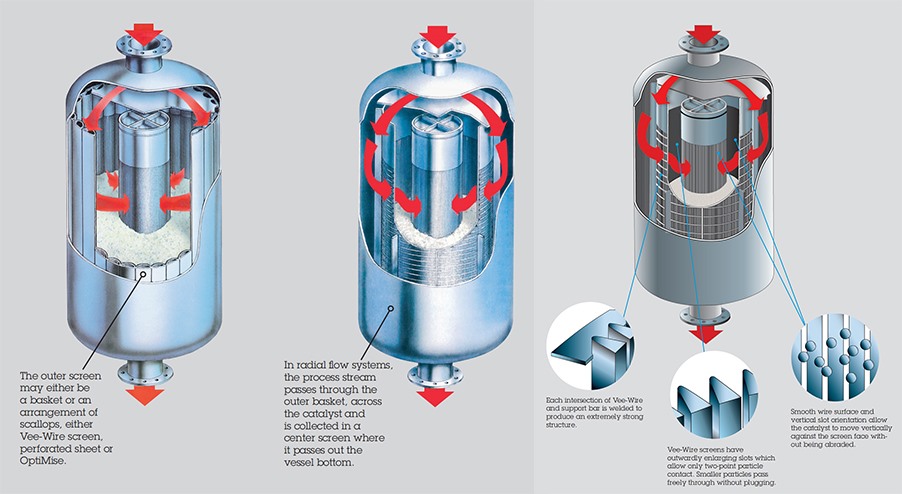

Reactor internals selection is not only about individual components but also about how each part works together inside the reactor.

A proper selection should consider:

• Reactor configuration

• Fluid distribution requirements

• Catalyst retention

• Mechanical strength

• Material compatibility

The goal is to achieve stable flow distribution, reliable catalyst support and long-term reactor operation.

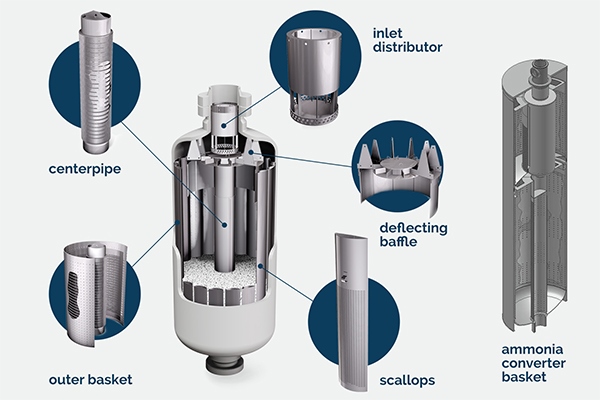

Selection Guide for Main Reactor Internals Components

1. Center Pipe Selection

The center pipe is a key flow collection or distribution component in radial flow reactors.

Selection considerations include:

• Reactor size and internal layout

• Required flow capacity

• Slot opening and open area

• Material requirements

A properly designed center pipe helps maintain uniform fluid flow through the catalyst bed.

(Read more: Center Pipe Design Guide)

2. Wedge Wire Scallop Selection

Scallops are installed around the reactor wall and work with other internals to control fluid collection or distribution.

Important factors include:

• Reactor diameter

• Catalyst particle retention

• Flow requirements

• Installation arrangement

Wedge wire scallops provide accurate slot openings and durable construction for refinery reactor applications.

(Read more: Scallop Design Guide)

3. Distributor Selection

The distributor directly affects fluid distribution performance inside the reactor.

Key selection factors:

• Flow rate

• Pressure drop requirement

• Open area

• Operating environment

Wedge wire distributors are widely used where precise flow control and mechanical reliability are required.

4. Support Grid Selection

Support grids provide mechanical support for the catalyst bed while allowing sufficient fluid passage.

Selection depends on:

• Catalyst loading weight

• Reactor dimensions

• Structural requirements

• Material selection

A suitable support grid helps maintain catalyst stability during operation.

(Read more: Support Grid Selection Guide)

Reactor Internals Configuration for Different Applications

The final internal arrangement depends on reactor design and performance requirements.

1. Standard Configuration

A typical radial flow reactor may include:

• Center pipe

• Scallops

• Support grid

This configuration is commonly applied where reliable catalyst support and stable flow collection are required.

2. Enhanced Distribution Configuration

For reactors requiring improved flow distribution, additional wedge wire distributors can be integrated.

This helps optimize:

• Fluid distribution

• Pressure balance

• Catalyst utilization

• Customized Reactor Internals

For reactor replacement, revamp or special applications, customized solutions are usually required.

YUBO designs and manufactures internals based on:

• Reactor drawings

• Customer specifications

• Operating conditions

Advantages of Wedge Wire Reactor Internals

Compared with conventional perforated plates or wire mesh solutions, wedge wire structures provide:

• Accurate Slot Control

Precise slot openings help achieve reliable catalyst retention and controlled fluid passage.

• High Strength Structure

Continuous welded wedge wire construction provides good mechanical performance under demanding conditions.

• High Open Area

The optimized open area improves flow efficiency and reduces unnecessary pressure loss.

• Custom Manufacturing

Components can be customized in dimensions, materials, slot sizes and configurations.

YUBO Reactor Internals Manufacturing Capability

As a wedge wire reactor internals manufacturer, YUBO supplies customized components for refinery and petrochemical applications.

Manufacturing process includes:

• Technical drawing review

• Component design confirmation

• Precision wedge wire fabrication

• Assembly and quality inspection

• Customized delivery

YUBO products include:

• Wedge wire scallops

• Center pipes

• Wedge wire distributors

• Catalyst support grids

Applications

YUBO wedge wire reactor internals are used in:

• Refinery reactors

• Hydroprocessing units

• Hydrotreating reactors

• Hydrocracking reactors

• Petrochemical applications

• Reactor revamp projects

FAQ

1. How do I choose the right reactor internals?

Selection depends on reactor structure, flow requirements, catalyst characteristics, material conditions and operating requirements.

2. What components are included in radial flow reactor internals?

Common components include center pipes, scallops, distributors and support grids.

3. Why use wedge wire for reactor internals?

Wedge wire provides precise slot openings, high strength and good flow characteristics, making it suitable for catalyst retention and distribution applications.

4. Can YUBO customize reactor internals?

Yes. YUBO manufactures customized reactor internals according to customer drawings and project requirements.
