Scallop Design Guide for Radial Flow Reactor Internals

Scallops are important catalyst retention components used in radial flow reactors for refinery and petrochemical applications. Installed near the reactor collection zone, they allow process fluids to pass through while preventing catalyst particles from migrating into outlet systems.

Modern wedge wire scallops are widely used because they provide stable flow performance, high open area, and reliable mechanical strength under severe operating conditions.

In-Depth Reading: Reactor Internal Components Guide for Oil Refineries

What Is a Reactor Scallop?

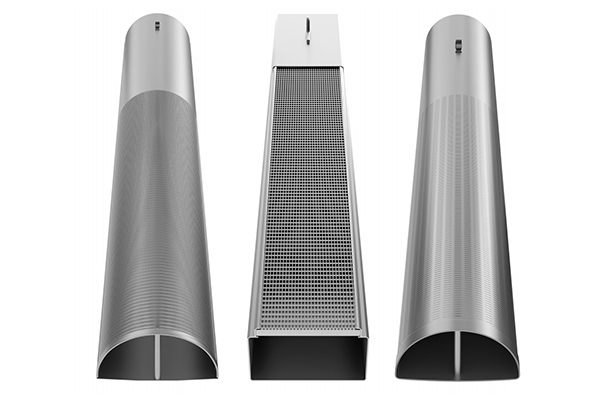

A reactor scallop is a curved screening structure installed around the reactor wall or center collection zone in radial flow reactors.

Its primary functions are:

• Retaining catalyst particles

• Supporting controlled radial flow

• Maintaining stable hydraulic performance inside the reactor

Scallops typically operate together with center pipes, support grids, and distributors as part of the complete reactor internals system.

Key Functions of Reactor Scallops

1. Catalyst Retention

The main purpose of a scallop is preventing catalyst migration while maintaining sufficient flow capacity through the reactor bed.

Proper catalyst retention helps maintain bed stability and reduces operational risks caused by catalyst loss.

2. Flow Transition Control

Scallops help create a smooth transition between the catalyst bed and the collection system. Uniform flow transition improves catalyst utilization and reduces localized channeling.

Poor flow distribution may increase pressure imbalance inside the reactor.

3. Pressure Drop Reduction

Wedge wire scallops typically provide higher open area than conventional perforated structures. Higher effective open area helps reduce hydraulic resistance and improve flow efficiency.

4. Structural Stability

Scallops must withstand long-term exposure to:

• High temperature

• Pressure fluctuation

• Catalyst loading

• Thermal stress

Proper reinforcement design helps maintain stable operation during extended service cycles.

Important Scallop Design Considerations

1. Slot Opening Size

Slot opening selection directly affects catalyst retention and flow behavior.

Smaller slots improve catalyst containment, while larger openings improve flow capacity. A balanced design is necessary to maintain both hydraulic efficiency and reliable retention performance.

2. Open Area Optimization

Higher open area generally improves fluid flow and lowers pressure drop. However, sufficient structural strength must also be maintained.

Modern wedge wire designs are commonly used because they achieve an effective balance between flow efficiency and mechanical stability.

3. Anti-Plugging Performance

Wedge wire slot geometry helps reduce plugging risk compared with traditional perforated plate designs. Smooth slot profiles improve particle movement and reduce fouling accumulation during operation.

4. Material Selection

Common materials include:

• SS304

• SS316L

• Duplex stainless steel

• High-temperature alloys

Material selection depends on process temperature, corrosion conditions, and reactor operating environment.

Why Wedge Wire Scallops Are Widely Used

Wedge wire scallops are widely used in refinery reactors because they offer:

• Precise slot control

• High open area

• Good anti-clogging performance

• Strong mechanical stability

• Long service life

Segmented scallop structures can also simplify installation and maintenance during reactor shutdown periods.

Role in Reactor Internal Systems

Scallops function as part of an integrated reactor internals system together with:

• Center pipes

• Support grids

• Flow distributors

In a typical radial flow reactor:

Process fluid enters through distributor systems

Flow moves evenly through the catalyst bed

Scallops retain catalyst particles while allowing fluid collection

Center pipes collect or redistribute process flow

Proper coordination between these components is essential for maintaining stable reactor hydraulic performance.

Common Problems in Poor Scallop Designs

Improper scallop design may result in:

• Catalyst leakage

• Flow maldistribution

• Increased pressure drop

• Plugging or fouling

• Reduced catalyst efficiency

Because of this, scallop design is considered an important part of reactor hydraulic engineering rather than a simple screening structure.

Applications in Refinery Reactors

Scallops are widely used in:

• Hydrocracking reactors

• Hydrotreating units

• Catalytic reforming reactors

• Desulfurization systems

• Petrochemical processing vessels

These applications require reactor internals capable of operating reliably under severe temperature and pressure conditions.

FAQ

1. What is the function of a scallop in a radial flow reactor?

A scallop retains catalyst particles while allowing process fluids or gases to pass through the reactor collection system.

2. Why are wedge wire scallops preferred?

Wedge wire scallops provide high open area, reliable catalyst retention, strong mechanical stability, and improved anti-plugging performance.

3. How does scallop design affect reactor performance?

Scallop design influences flow distribution, pressure drop, catalyst stability, and overall hydraulic performance inside the reactor.

4. What problems can poor scallop design cause?

Poor designs may lead to catalyst leakage, flow channeling, increased pressure drop, and reduced reactor efficiency.

Scallops are essential reactor internal components used for catalyst retention and controlled radial flow in refinery and petrochemical reactors. Proper scallop design helps improve hydraulic stability, reduce pressure drop, and maintain efficient long-term reactor operation.

Modern wedge-wire scallops are widely used for their high open area, anti-plugging characteristics, and reliable mechanical performance in demanding industrial environments.
