Center Pipe Design Guide for Radial Flow Reactor Internals

In radial flow reactors used in oil refining and petrochemical processes, the center pipe is a key internal component that controls how process fluids are collected or distributed after passing through the catalyst bed.

Its design directly affects flow distribution, pressure stability, and overall reactor efficiency. A well-designed center pipe helps ensure uniform radial flow and stable long-term operation.

In-Depth Reading: Reactor Internal Components Guide for Oil Refineries

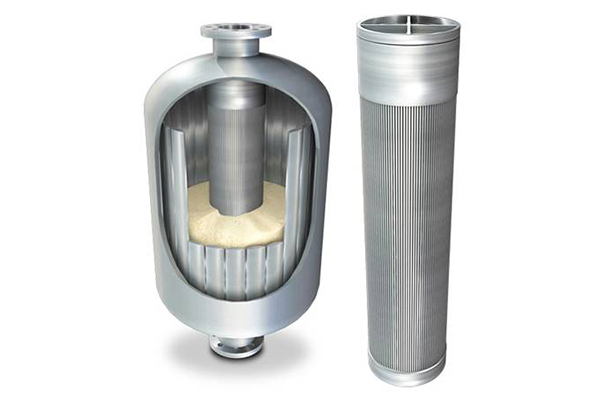

What Is a Center Pipe in a Reactor?

The center pipe is a central axial component in radial flow reactors that manages fluid collection or distribution. It works as part of the reactor internal system together with the catalyst bed, support grid, and flow distributor.

Its main purpose is to maintain controlled hydraulic balance inside the reactor.

Key Functions of a Center Pipe

The center pipe performs several essential functions:

• Ensures uniform flow collection or distribution

• Maintains radial flow balance across the catalyst bed

• Reduces pressure imbalance inside the reactor

• Supports stable reactor hydraulic operation

Poor design may lead to flow maldistribution and reduced catalyst efficiency.

Key Design Considerations for Center Pipes

1. Flow Distribution Efficiency

The design must ensure that fluid entering or exiting the center pipe is evenly distributed across the catalyst bed. Any imbalance can affect reaction performance and catalyst lifespan.

2. Pressure Drop Control

One of the main engineering goals is minimizing unnecessary pressure loss while maintaining stable flow conditions. Internal geometry and opening configuration must be optimized accordingly.

3. Mechanical Strength

Center pipes operate under high temperature, pressure, and sometimes corrosive environments. The structure must withstand:

Catalyst load pressure

Thermal expansion stress

Long-term operational fatigue

4. Open Area Design

In wedge wire or slotted configurations, the open area must be carefully designed to balance flow capacity and mechanical integrity. Too much open area may weaken the structure, while too little may restrict flow.

5. Corrosion and Material Resistance

Material selection depends on process conditions. Common materials include:

SS304 for general applications

SS316L for corrosive environments

Duplex stainless steel for high strength and corrosion resistance

YUBO Filtration offers professional center pipe custom design services for reactor internals. Our filtration experts can design various center pipes(inner screens) for your various industrial operating conditions.

Center Pipe Role in Reactor System

The center pipe does not work alone. It operates as part of an integrated system including:

• Flow distributors

• Catalyst support grids

• Scallop structures

Together, these components ensure stable radial flow and efficient reactor performance.

Common Issues in Poor Designs

Improper center pipe design may cause:

Flow maldistribution

Increased pressure drop

Localized catalyst inefficiency

Reduced reactor performance

FAQ

1. What is the function of a center pipe in a radial flow reactor?

It collects or distributes process fluids and maintains balanced radial flow inside the reactor.

2. Why is center pipe design important?

Because it directly affects flow distribution, pressure stability, and catalyst utilization efficiency.

3. What materials are commonly used?

Stainless steel 304, 316L, and duplex stainless steel are commonly used depending on operating conditions.

4. Is the center pipe a structural or flow component?

It serves both roles: hydraulic flow control and structural support within the reactor system.

The center pipe is a critical hydraulic component in radial flow reactor internals. Its design influences flow distribution, pressure stability, and overall reactor efficiency. Proper engineering ensures stable operation and improved catalyst performance over long service cycles.
