Radial Flow Reactor Internals: Design, Components, and Industrial Solutions

Radial flow reactor internals are structural and filtration components installed inside catalytic reactors to support catalyst beds, control radial fluid distribution, and collect processed products efficiently. Properly designed internals reduce pressure drop, improve catalyst utilization, and ensure stable long-term reactor performance in refinery and petrochemical applications.

What Are Radial Flow Reactor Internals?

Radial flow reactors are widely used in hydroprocessing, catalytic reforming, ammonia synthesis, and other chemical processes that require large catalyst volumes.

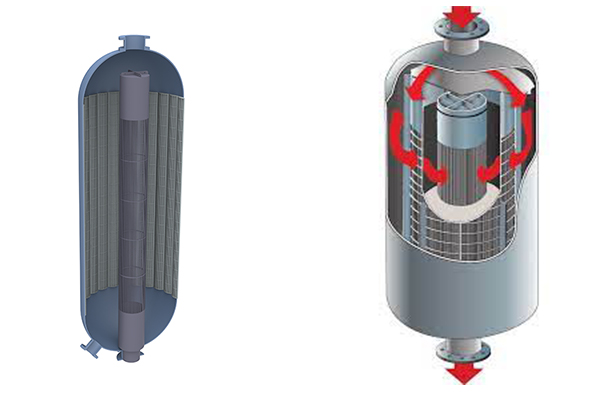

Unlike axial flow reactors, where fluid flows vertically through the catalyst bed, radial flow reactors move process fluid from the outer region of the reactor toward a central collector or vice versa. This configuration reduces pressure drop and improves flow distribution across large catalyst beds.

To enable this flow pattern, reactors require a system of internal components known as reactor internals. These structures perform several critical functions:

• Supporting the catalyst bed mechanically

• Controlling fluid distribution through the catalyst layer

• Preventing catalyst particle loss

• Collecting product flow with minimal resistance

Key Components of Radial Flow Reactor Internals

Although configurations vary by process design, most radial flow reactors contain several essential internal components.

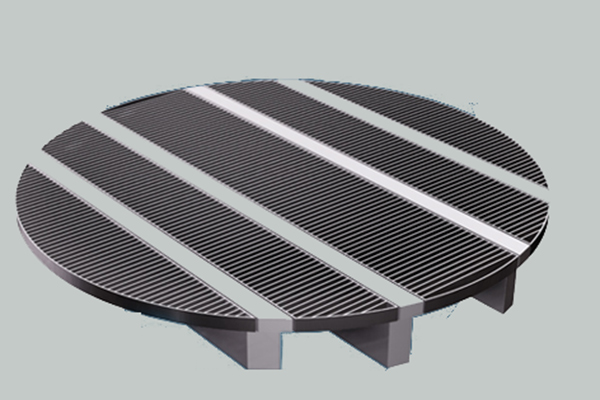

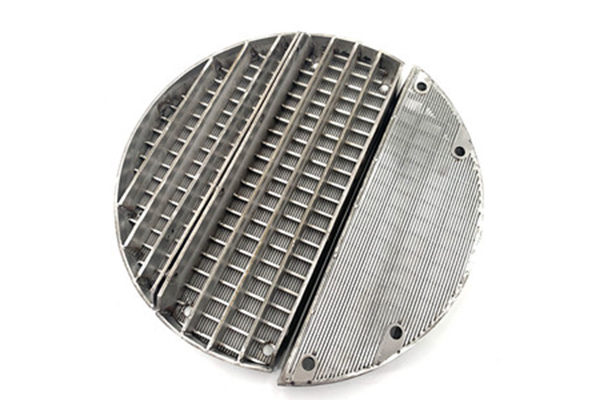

1. Catalyst Support Grid

The catalyst support grid is the primary load-bearing structure located beneath the catalyst bed. Its purpose is to support the full weight of the catalyst while allowing process fluid to pass through the structure.

Typical support grid designs include:

stainless steel structural beams

perforated support plates

wedge wire support grids

Because catalyst beds can weigh several tons, support grids must provide high mechanical strength while maintaining sufficient open area for fluid flow.

2. Catalyst Retention Screens

Catalyst retention screens are installed above or below the support grid to prevent catalyst particles from entering the outlet flow path.

Unlike support grids, retention screens are designed primarily for particle control rather than structural load. They typically feature precise slot openings or mesh structures sized according to the catalyst pellet diameter.

Retention screens help maintain catalyst bed stability and protect downstream equipment.

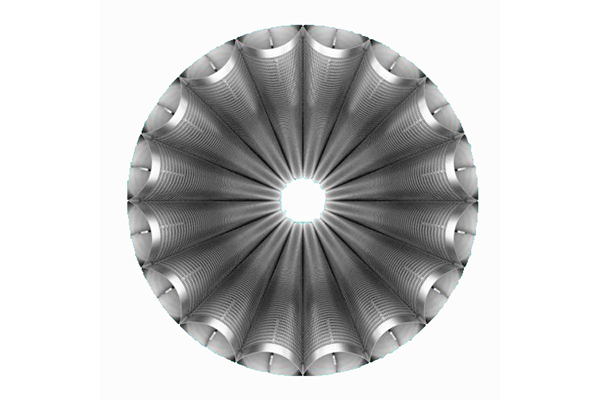

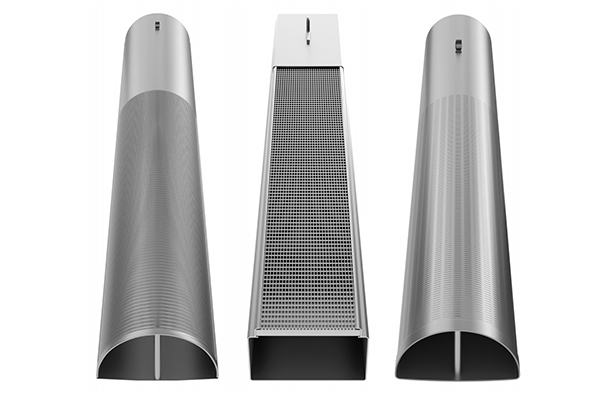

3. Wedge Wire Scallop Screens

Scallop screens are curved filtration panels installed along the inner wall of the reactor. In radial flow reactors, they act as flow entry or exit screens for the catalyst bed.

Wedge wire scallops are widely used because they provide:

high open area for efficient radial flow

precise slot openings for catalyst retention

strong resistance to clogging and fouling

The V-shaped wire profile allows particles to slide off the screen surface, reducing the risk of blockage during long operating cycles.

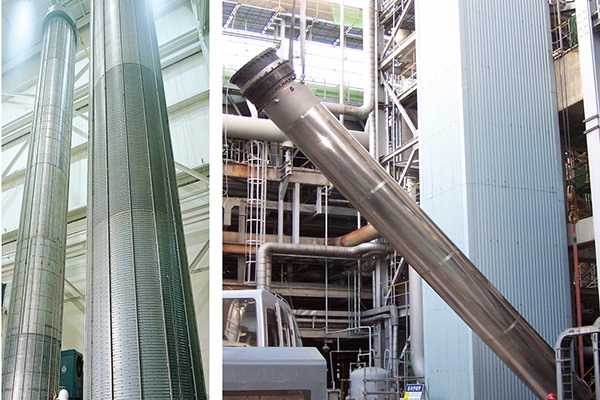

4. Center Pipe Collector

The center pipeis the primary product collector located at the center of the reactor. After process fluid passes through the catalyst bed, it flows toward the center pipe and exits the reactor.

Center pipes may be constructed from:

perforated cylindrical plates

wedge wire screen cylinders

A properly designed center pipe ensures uniform product collection and prevents pressure imbalance within the reactor.

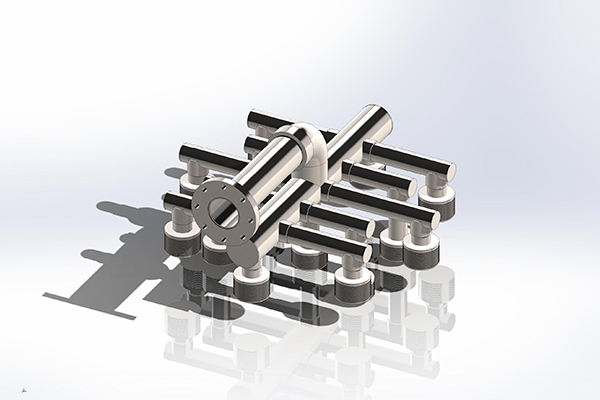

5. Flow Distribution Systems

Uniform fluid distribution is critical for catalytic reactor performance. Flow distributors help guide incoming process fluid evenly across the catalyst bed.

Poor flow distribution can cause:

channeling within the catalyst bed

uneven catalyst utilization

localized temperature variations

For this reason, distributor design is an important aspect of reactor internals engineering.

We can custom-design various wedge-wire reactor internals for the refining industry.

Engineering Considerations in Reactor Internals Design

Designing reactor internals requires balancing several technical factors.

1. Flow Distribution

Uniform radial flow ensures that the entire catalyst bed participates in the reaction process.

2. Pressure Drop

Internals should maintain high open area to minimize pressure losses across the reactor.

3. Mechanical Strength

Components must withstand catalyst loads, thermal expansion, and high-pressure operating conditions.

4. Catalyst Protection

Proper retention screens and support structures prevent catalyst movement or loss during operation.

Materials Used in Reactor Internals

Reactor internals are typically manufactured from corrosion-resistant materials capable of withstanding harsh process environments.

Common materials include:

Stainless steel 304

Stainless steel 316L

High-temperature alloy steels

Material selection depends on process chemistry, operating temperature, and reactor pressure conditions.

Industrial Applications

Radial flow reactor internals are widely used in large catalytic processing units, including:

• Petroleum refining

• hydrodesulfurization reactors

• hydrocracking reactors

• Petrochemical production

• catalytic reforming units

• hydroprocessing reactors

• Chemical synthesis

• ammonia production reactors

• methanol synthesis reactors

In these industries, optimized reactor internals help maintain efficient reactions and long catalyst service life.

Radial flow reactor internals are essential components that enable efficient catalytic processing in large industrial reactors. By supporting catalyst beds, controlling radial flow distribution, and collecting product streams, these internals directly influence reactor performance and reliability.

Key components such as catalyst support grids, catalyst retention screens, wedge wire scallop screens, and center pipe collectors work together to maintain stable flow conditions and protect catalyst beds during operation.

Properly engineered internals reduce pressure drop, improve catalyst utilization, and support long operating cycles in refinery, petrochemical, and chemical processing facilities.

Frequently Asked Questions

1. What are radial flow reactor internals?

Radial flow reactor internals are structural and filtration components inside catalytic reactors that support catalyst beds, distribute process fluids, and collect product flow efficiently.

2. What is the role of a catalyst support grid?

The catalyst support grid is a load-bearing structure that supports the catalyst bed while allowing process fluid to flow through the reactor.

3. What is the difference between a support grid and a retention screen?

A support grid carries the weight of the catalyst bed, while a retention screen prevents catalyst particles from entering the outlet flow path.

4. Why are wedge wire screens used in reactor internals?

Wedge wire screens provide high open area, precise slot openings, and strong resistance to clogging, making them suitable for demanding catalytic reactor environments.
