Reactor and Pressure Vessel Internals

Apr. 29, 2025

Many refiners know that it is important to have the best catalyst to ensure optimal performance; however, only a few recognize that it is equally important to have the best reactor internals to ensure the best possible conditions for the catalytic reactions in your reactor.


YUBO designs and manufactures various vessel internals for media retention--center pipe, scallop, and Lateral System.  We've supplied center pipe, scallop, v wire Lateral Systems for hundreds of radial, downflow, and upflow systems worldwide. This experience has made us an industry leader in vessel internal design.


Reactor and Pressure Vessel Internals


Our products rely on our V-wire screens, the top-of-the-line product in vessel screen internals.

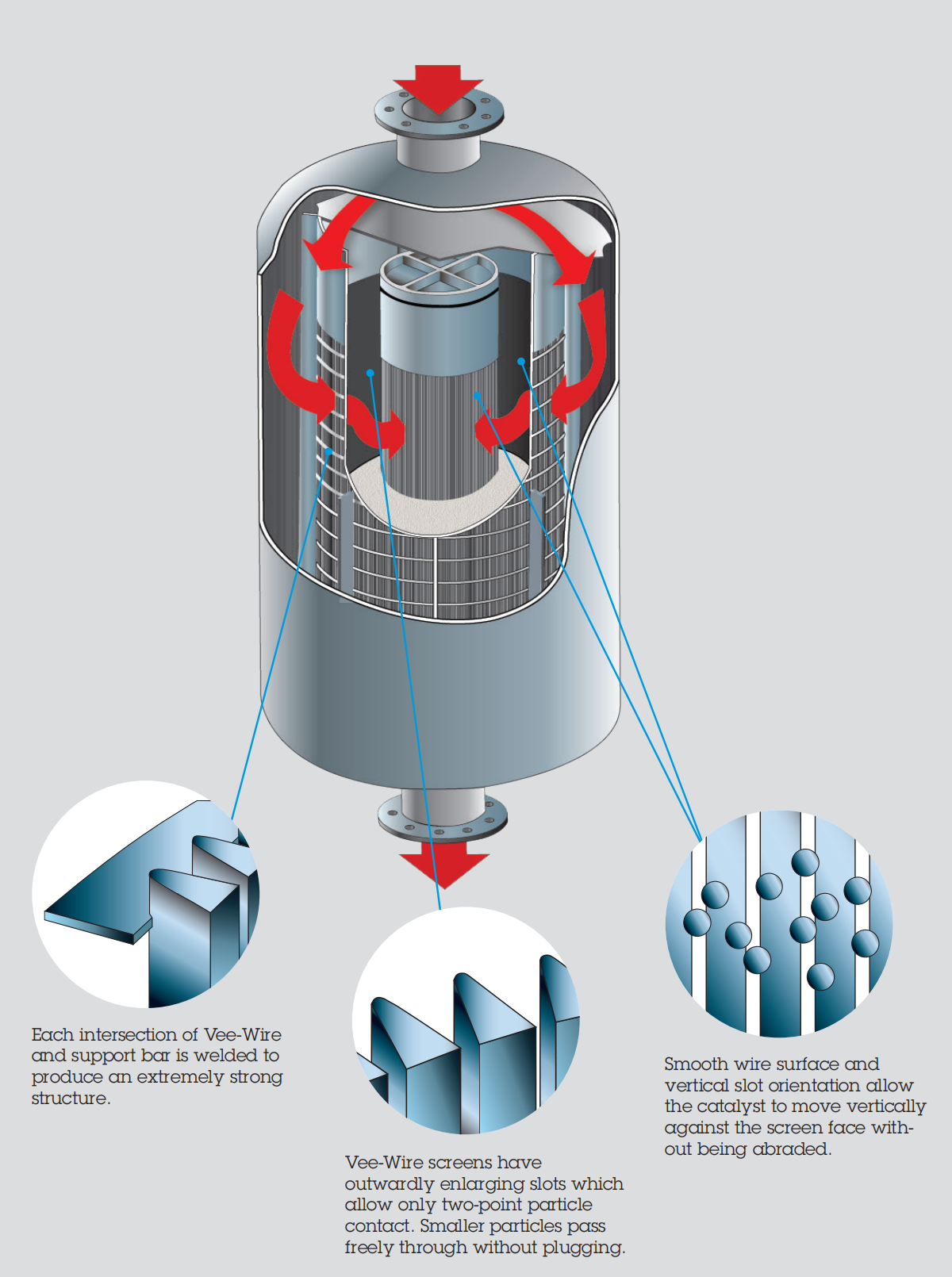

These screens are fabricated by attaching V-shaped profile wire to an array of support rods and welding each intersection of wire and rod. That forms an extremely robust screen with continuous slot openings of very close tolerance.


Our products are integral to all the major chemical processes and are used in a variety of industrial applications.

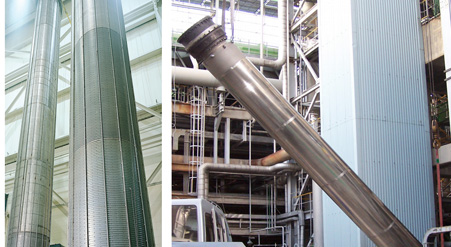

Center Pipes (Inner Screens): Essential for radial flow reactors, these cylindrical screens form the inner boundary of your catalyst bed. They are expertly designed to ensure uniform collection or distribution of flow from or to the center, preventing channeling and maximizing catalyst contact.


Center Pipes Inner Screens

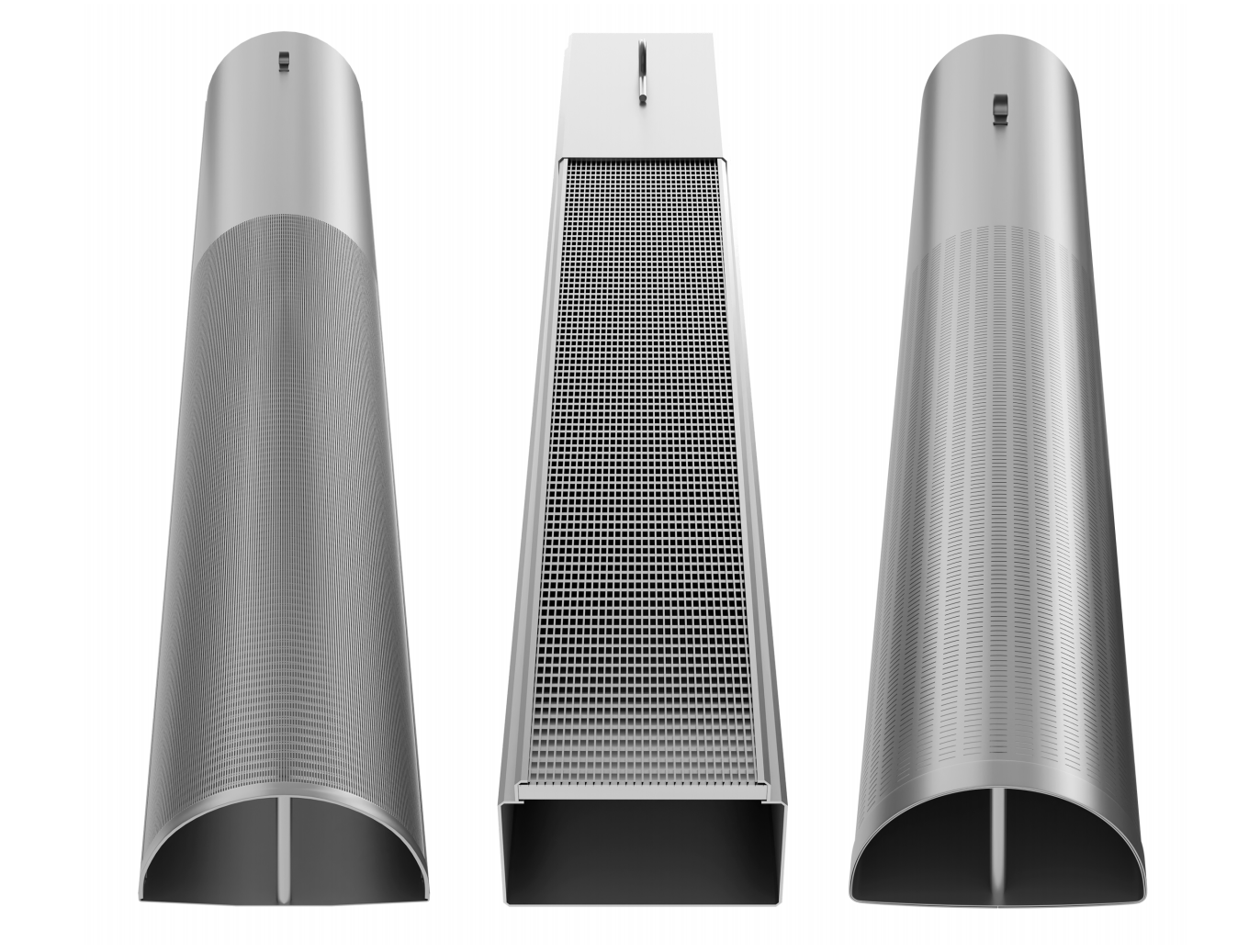

Scallops (Outer Screens): Forming the outer boundary in radial flow systems, scallops run parallel to the vessel wall. They guarantee even flow distribution or collection along the periphery, eliminating wall effects and ensuring the entire catalyst bed is effectively utilized.


Reactor Internals Scallops

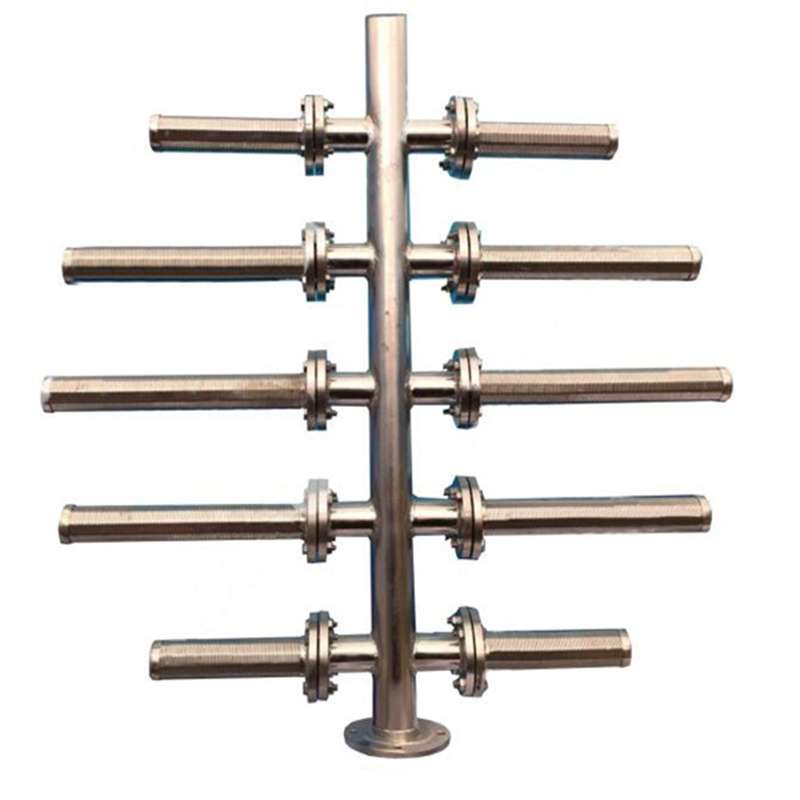

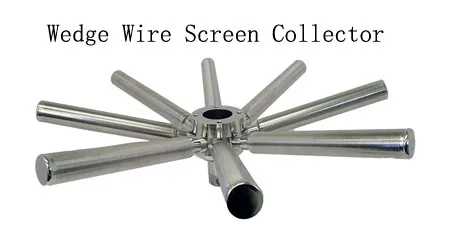

Header and Lateral Systems: Whether for collectors or distributors, these systems (using either a central header pipe or hub connected to multiple screen laterals) are the gold standard for achieving uniform flow across the entire vessel diameter in downflow or upflow reactors. They combat channeling and ineffective bed usage, maximizing process efficiency and yield.

Reactor Internals Header and Lateral Systems


YUBO's internals are integral components in major chemical processes worldwide, trusted across diverse industrial applications. Our experience translates directly into reliable, high-performance solutions tailored to your specific needs.


Don't let subpar internals be the bottleneck in your process. Discover how YUBO's latest-generation reactor internals, built on industry-leading V-wire screen technology, can help you achieve uniform flow, maximize catalyst effectiveness, and unlock the true performance potential of your reactors.


Reach out to a YUBO advisor today to discuss your specific challenges and explore how our tailored vessel internal solutions can drive significant improvements in your operations.
