How to Design Radial Flow Reactor Internals

Designing radial flow reactor internals requires precise control of fluid distribution, pressure drop, and catalyst support. A well-engineered system ensures uniform flow through the catalyst bed, minimizes energy loss, and maximizes reactor efficiency in refining and petrochemical processes.

For a complete overview, see our main guide: Radial Flow Reactor Internals Design Guide

What Defines a Good Radial Flow Reactor Internals Design?

A successful radial flow reactor internals design achieves three critical objectives:

• Uniform radial flow distribution

• Minimal pressure drop across the catalyst bed

• Reliable catalyst retention and structural stability

Failure in any of these areas can result in channeling, uneven reaction zones, or premature catalyst deactivation.

Step-by-Step Design Process For Radial Flow Reactor Internals

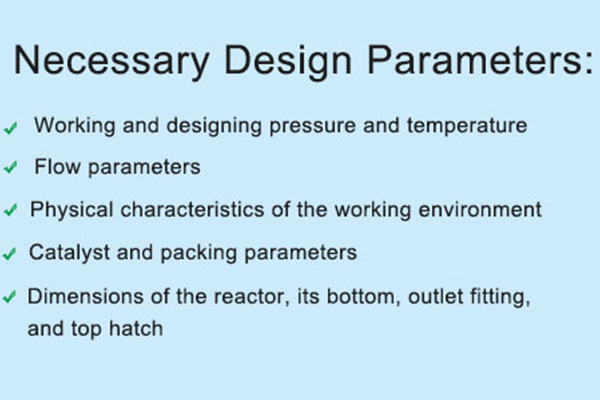

Step 1: Define Process Conditions

Start by identifying the operating parameters:

• Flow rate (liquid or gas)

• Operating pressure and temperature

• Fluid properties (viscosity, density)

• Corrosive environment

These parameters determine material selection and structural requirements.

Step 2: Determine Flow Direction

Radial flow reactors typically operate in two configurations:

• Outside → Inside (most common)

• Inside → Outside

This decision directly impacts the design of the center pipe and outer distribution system.

Step 3: Design Flow Distribution System

Uniform flow distribution is the most critical factor.

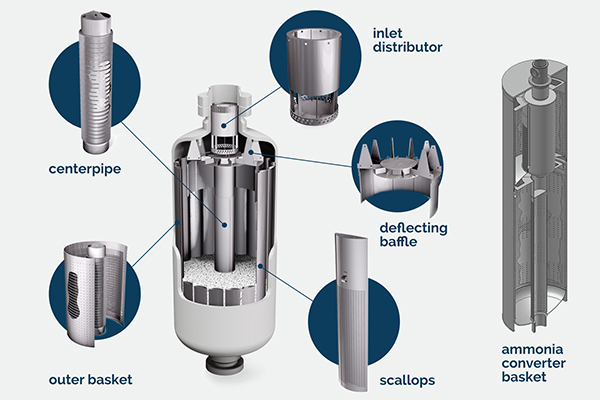

Key components include:

• Center pipe (inner screen)

• Scallops (outer screens)

• Distributors or laterals

Key Design Goal:

Ensure equal velocity distribution across the entire catalyst bed.

Step 4: Calculate Pressure Drop

Pressure drop must be minimized while maintaining flow control.

Key Factors:

• Open area of screens

• Slot size

• Flow velocity

• Bed thickness

Design Tip:

A higher open area reduces pressure drop but may reduce mechanical strength; balance is essential.

Step 5: Select Slot Size

Slot size determines catalyst retention and flow performance.

General Rule:

• Slot size < catalyst particle size

• Typical range: 0.2 mm – 2 mm

• Too small → clogging risk

• Too large → catalyst loss

Step 6: Design Catalyst Support System

The support grid must withstand the full load of the catalyst bed.

Key Requirements:

• High mechanical strength

• Uniform load distribution

• Resistance to high temperature and corrosion

Step 7: Material Selection

Material selection depends on process conditions:

Common options:

• SS304 / SS316L (standard)

• Duplex stainless steel

• Inconel (high temperature / corrosive environments)

Step 8: Mechanical Strength & Structural Integrity

The internals must resist:

Catalyst weight

Thermal expansion

Pressure fluctuations

Step 9: Anti-Clogging Design

Clogging can severely impact reactor performance.

Solutions:

Use wedge wire profiles

Maintain continuous slot openings

Optimize flow velocity

Learn more: Wedge Wire Distributor

Radial Flow Reactor Internals Engineering Checklist

Before finalizing your design, verify:

✔ Uniform radial flow distribution achieved

✔ Pressure drop within acceptable limits

✔ Slot size matches catalyst specification

✔ Adequate mechanical strength

✔ Material suitable for operating environment

✔ No dead zones or bypass flow paths

Common Design Mistakes to Avoid

1. Uneven Flow Distribution

Leads to channeling and reduced efficiency

2. Incorrect Slot Size

Causes clogging or catalyst loss

3. Insufficient Support Strength

Results in structural failure

4. Ignoring Pressure Drop

Increases energy consumption

How Design Impacts Reactor Performance

A well-designed radial flow reactor internals system can:

• Reduce pressure drop by 20–50%

• Improve catalyst utilization

• Increase throughput capacity

• Extend equipment lifespan

Related Design Topics

In-depth understanding:

Radial Flow Reactor Internals Design Guide

Oil Refinery Reactor Internals

FAQ

1. What is the most important factor in reactor internals design?

Uniform flow distribution is the most critical factor.

2. How do you reduce pressure drop in a reactor?

By increasing open area, optimizing slot size, and improving flow distribution.

3. What is the typical slot size for reactor internals?

Usually between 0.2 mm and 2 mm, depending on catalyst size.

4. Why is wedge wire used in reactor internals?

It provides high strength, precise slot openings, and anti-clogging performance.

Designing radial flow reactor internals is a complex engineering task that directly affects reactor efficiency, reliability, and operating cost. By following a structured design approach, engineers can achieve optimal flow distribution, low pressure drop, and long-term performance.
