Support Grid Selection Guide for Catalyst Bed Support in Reactor Internals

Role of Support Grid in Reactor Internals

Support grids are structural components installed at the bottom or inside reactor vessels to hold catalyst beds in place while allowing process fluids to pass through evenly.

In radial flow and fixed-bed reactors, the support grid is not only a mechanical structure but also part of the hydraulic system. It directly influences:

• Catalyst bed stability

• Flow distribution uniformity

• Pressure drop behavior

• Overall reactor efficiency

In most refinery systems, support grids work together with center pipes, scallops, and distributors as a unified internals system rather than independent parts.

Why Support Grid Selection Matters

Improper selection of a support grid can lead to operational problems that are difficult to correct once the reactor is in service.

Common risks include:

• Catalyst bed settlement or deformation

• Uneven flow distribution

• Localized high pressure drop

• Catalyst attrition and migration

• Reduced reactor cycle life

From an engineering perspective, support grid selection is a balance between mechanical strength and hydraulic performance.

Key Factors for Support Grid Selection

1. Mechanical Load Capacity

The grid must support the full weight of the catalyst bed under operating and shutdown conditions. High-temperature environments may also introduce thermal stress and long-term deformation risks.

2. Open Area and Flow Efficiency

Open area determines how easily fluids pass through the support structure. Higher open area reduces pressure drop but must be balanced against strength requirements.

Wedge wire structures are often used because they provide a strong combination of open area and rigidity.

3. Catalyst Compatibility

Different reactors use different catalyst shapes and sizes. The support grid must prevent particle loss while avoiding excessive restriction.

Key considerations include:

• Catalyst particle size

• Abrasion resistance

• Fouling tendency

4. Material Selection

Material choice depends on process temperature, corrosion environment, and chemical exposure.

Common materials include:

• Stainless steel 304

• Stainless steel 316L

• Duplex stainless steel

• High-temperature alloy steels

In hydroprocessing units, corrosion resistance is often more critical than mechanical strength alone.

5. Reactor Type and Flow Pattern

Support grid design varies depending on reactor configuration:

• Radial flow reactors require uniform circumferential distribution

• Fixed-bed reactors focus on vertical load distribution

• High-pressure reactors require reinforced structural frames

Understanding flow behavior inside the reactor is essential before final selection.

Types of Support Grids

In industrial applications, several design types are commonly used:

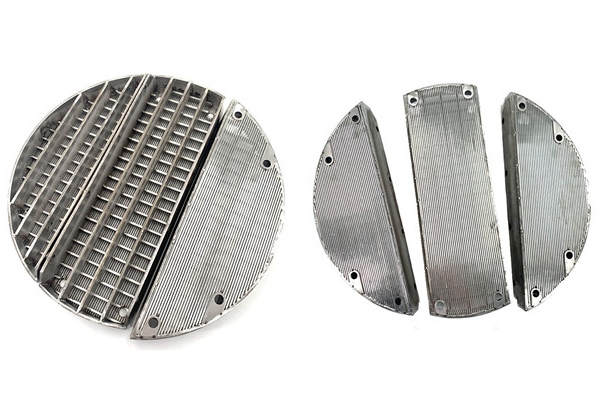

• Wedge wire support grid – high open area and anti-plugging performance

• Perforated plate grid – traditional design with good strength

• Bar-type grid – heavy-duty structural support for large catalyst beds

Each design represents a trade-off between mechanical strength and hydraulic efficiency.

Common Failure Cases

Support grid issues are often not caused by a single factor but by combined mechanical and hydraulic stress over time.

Typical problems include:

• Catalyst bed collapse or uneven settling

• Flow channeling through weak zones

• Excessive pressure drop increase

• Grid deformation under thermal cycling

• Localized plugging or fouling accumulation

These failures usually affect overall reactor efficiency and may require full shutdown for correction.

Engineering Considerations in Real Applications

In refinery environments such as hydrocracking, hydrotreating, and catalytic reforming, support grids must operate under severe conditions:

• High temperature and pressure

• Continuous catalyst loading

• Corrosive process media

• Long operational cycles

Therefore, modern designs focus on modular structures, easier maintenance, and improved flow stability rather than only mechanical strength.

Support grid selection is a critical engineering step in reactor internals design. It directly affects catalyst stability, flow distribution, and long-term reactor performance.

A well-designed support grid balances mechanical load capacity, hydraulic efficiency, and material durability. In modern refinery systems, wedge wire support grids are widely adopted due to their strength, precision, and stable flow characteristics under demanding operating conditions.

FAQ

1. What is the function of a support grid in a reactor?

A support grid provides structural support for the catalyst bed and ensures uniform fluid passage through the reactor internals.

2. Why is support grid selection important?

Proper selection helps maintain catalyst stability, control flow distribution, and reduce the risk of pressure drop or bed deformation during operation.

3. What factors are critical when selecting a support grid?

Key factors include load-bearing capacity, open area ratio, material compatibility, catalyst properties, and reactor operating conditions such as temperature and pressure.

4. What problems can occur with poor support grid design?

Improper design may result in catalyst bed instability, uneven flow distribution, increased pressure drop, and reduced reactor efficiency.
