Wastewater Treatment Optimization Using Wedge Wire Sidehill Screens

In modern wastewater treatment, efficiency and reliability are critical for both environmental compliance and operational costs. Among the most effective innovations for solid-liquid separation and pretreatment is the wedge wire sidehill screen -- a static, self-cleaning filtration system that enhances flow efficiency, reduces maintenance, and improves effluent quality.

How Wedge Wire Sidehill Screens Work

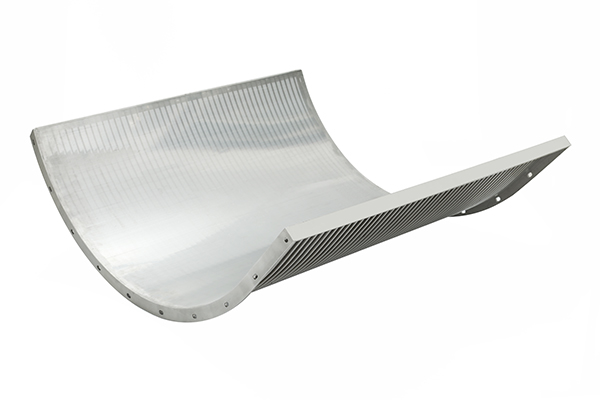

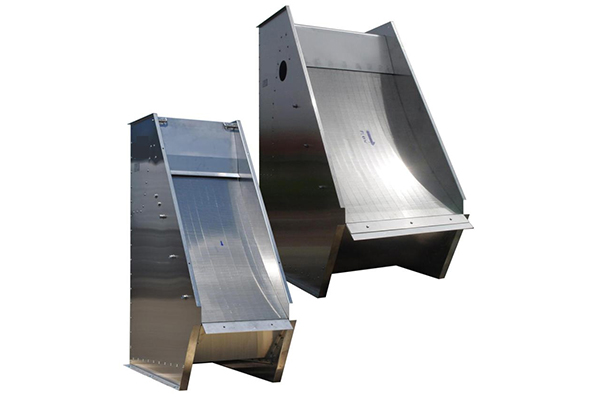

A sidehill screen, also known as a parabolic screen or static wedge wire screen, operates without moving parts or external power. Wastewater flows evenly over a curved stainless-steel wedge wire panel positioned at an angle, typically between 45° and 60°.

The V-shaped wire slots, usually 0.25–1.0 mm wide, allow water and fine particles to pass through while capturing solids on the surface. Gravity alone drives the separation, making the process energy-efficient and highly reliable.

In industrial applications, such as municipal sewage pretreatment, food and beverage processing, and paper pulp recovery, the screens deliver consistent performance under variable flow conditions. A typical sidehill filter for wastewater can handle flow rates from 20 to 300 m³/h, depending on slot size and screen curvature.

Advantages of Wedge Wire Sidehill Screens

• High Screening Efficiency: The continuous V-wire design provides uniform open area and minimizes clogging, ensuring steady throughput.

• Energy-Free Operation: No motors or power supply are required, resulting in significantly reduced operational costs.

• Long Service Life: Constructed from 304 or 316L stainless steel, these screens resist corrosion and mechanical wear, even in the most aggressive environments.

• Low Maintenance: The self-cleaning design minimizes downtime and manual cleaning.

• Modular Design: Sidehill screens can be customized for specific applications, including primary wastewater filtration, industrial effluent treatment, and sludge dewatering systems.

Optimizing Wastewater Treatment with Sidehill Technology

Integrating wedge wire sidehill screens into wastewater systems optimizes pretreatment efficiency by removing 30–60% of suspended solids before biological or chemical processing stages. This early removal reduces aeration energy consumption by up to 20%, improves downstream equipment lifespan, and enhances overall plant performance.

When used in industrial wastewater screening systems, such as food processing or textile effluent plants, sidehill screens provide consistent flow control, reducing overloading on clarifiers and filters. In municipal facilities, they help achieve regulatory compliance by improving BOD and TSS reduction.

Applications Across Industries

• Municipal wastewater plants – Primary solid-liquid separation.

• Food & beverage production – Recovery of solids and reduction of organic load.

• Pulp & paper mills – Fiber recovery and process water reuse.

• Chemical processing – Efficient pretreatment before neutralization.

• Mining and aggregate plants – Dewatering of slurries and tailings.

Sustainable and Cost-Effective Solution

As global regulations tighten around water reuse and discharge quality, the wedge wire sidehill screen has become a key technology for sustainable water management. Its energy-free operation, low maintenance demands, and proven reliability make it a preferred choice for industries seeking to optimize wastewater treatment while meeting environmental standards.

FAQ: Wedge Wire Sidehill Screens in Wastewater Treatment

1. What makes wedge wire sidehill screens suitable for high-load wastewater systems?

Unlike flat mesh filters, sidehill screens maintain stable hydraulic flow even under fluctuating load conditions. The curved screen design distributes liquid evenly, reducing turbulence and preventing blockages during peak inflow.

2. How do sidehill screens help meet stricter discharge regulations?

They enhance primary solid removal efficiency, allowing treatment plants to meet BOD and TSS compliance limits without major system upgrades. This pre-filtration step can improve downstream biological treatment consistency and effluent quality.

3. What are common maintenance practices for sidehill screens?

Routine inspection typically involves flushing the collection tray and checking slot integrity once per week. Because there are no rotating parts, preventive maintenance costs are minimal — generally under 5% of total O&M expenses annually.

4. How do wedge wire screens impact overall plant sustainability?

By using gravity-driven operation, sidehill screens lower electricity use and carbon footprint, helping treatment plants qualify for sustainability certifications or energy-efficiency incentives.

5. Are sidehill screens effective for retrofitting existing wastewater plants?

Yes. Their compact, modular construction allows easy integration into existing headworks or sedimentation basins. Retrofitting sidehill screens often increases pretreatment capacity by 20–30% without adding energy demand.

6. Can wedge wire sidehill screens handle oily or fibrous wastewater?

With proper slot sizing and flow control, sidehill screens effectively process fibrous slurries, food residues, and light oil-laden effluents. Optional spray bars or dual-stage screening can further enhance removal performance.

7. How are screen slot sizes selected for different wastewater types?

Slot sizes typically range from 0.25 mm to 1.5 mm. Finer slots are used for municipal or food wastewater, while wider openings are ideal for mining, pulp, or fibrous slurries to prevent clogging.

8. What are emerging innovations in sidehill screen design?

Modern screens now feature anti-corrosion coatings, replaceable modular panels, and automated rinsing systems, improving service life and uptime for high-volume treatment operations.
