Water Treatment

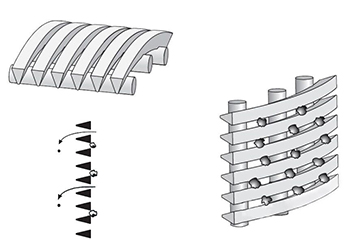

Wedge wire screens, also known as V-wire or profile wire screens, are formed by welding V-shaped wires to support rods, creating a continuous slot that allows water to flow through while retaining solids. This unique structure delivers consistent filtration, high open area, and minimal pressure drop.
Engineered for high performance under demanding conditions, wedge wire screens are precision-manufactured to deliver excellent mechanical strength, resistance to clogging, and a long operational life.
Designed for precision and durability, wedge wire screens are made from corrosion-resistant stainless steel, making them ideal for the corrosive environments found in wastewater treatment plants.
✔ Non-clogging design: Continuous slots reduce blockages and require less cleaning
✔ Custom slot sizes: Precise slot openings from 0.025 mm to several mm for tailored filtration
✔ Corrosion resistance: Stainless steel construction resists chemical degradation and extends service life
✔ Easy maintenance: Smooth surfaces and robust design reduce downtime and labor costs
✔Sustainability: Enhances water reuse and reduces waste in compliance with environmental standards
Wedge wire screen has many advantages and it is used in the water treatment industry.
In this industry, wedge wire screens filter water.
Hydroelectric
Drinking Water
Sewage treatment
Dewatering
Agricultural
Water Treatment
Are you looking for a reliable screen manufacturer?
We are at your disposal. YUBO is a proven and recognised manufacturer of industrial screens. An experienced team of our designers and engineers, as well as manufacturing capabilities, ensure the delivery of optimal solutions in the shortest possible time.
Wedge Wire Screens Provide Accurate Filtration Separation for the Water Treatment Industry
The water treatment industry has long faced numerous challenges such as water pollution, water scarcity, and climate change. These challenges have created a demand for technology and solutions to enhance the sustainability and efficiency of water resources. Wedge wire screens play an indispensable role in various areas of water treatment, such as filtration and separation, solid-liquid separation, flow control, and sludge treatment. These products efficiently facilitate water filtration, separation, and flow control, playing a crucial role in ensuring the sustainable utilization of water resources and environmental protection.
Groundwater testing: Wedge wire can filter out sand, gravel and other debris to prevent groundwater contamination.
Seawater desalination: As a part of pre-filter systems, wedge wire can effectively remove impurities and particles from seawater.
Municipal water treatment: Wedge wire is used to separate solid impurities from water to improve the quality of municipal water.
Fish protection barrier: Wedge wire protects fish and other aquatic organisms from being drawn into the water intake system.
Sludge treatment: Wedge wire can efficiently separate water and solid sludge and facilitates treatment and dewatering of sludge.
We supply various wedge wire screen filter strainers used in wastewater treatment industries.

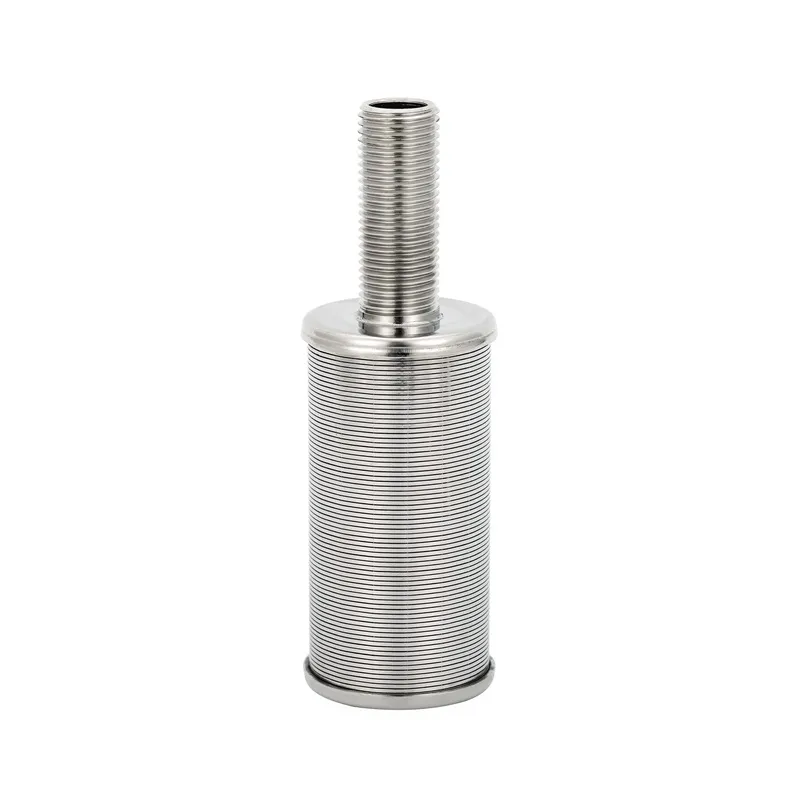

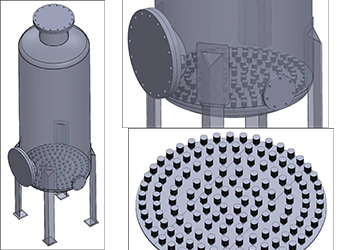

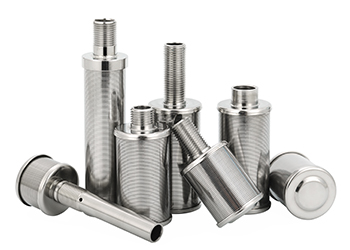

1. Filter Nozzle - Precision Filtration at the Final Stage
Application: Tertiary filtration, media retention in sand and activated carbon filters
Filter nozzles are compact wedge wire elements mounted at the base of filter vessels. In wastewater treatment, they prevent media loss and ensure even flow distribution during both filtration and backwash cycles.
Wedge Wire Filter Nozzle | Vessel Filter Nozzle | Mixed Bed Filter Nozzle |

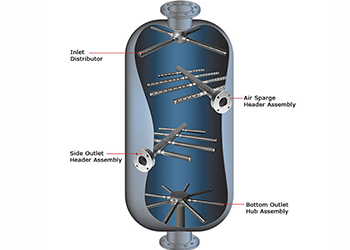

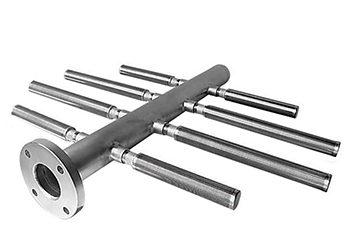

2. Wedge Wire Water Distributor - Uniform Flow for High Efficiency
Application: Flow regulation in trickling filters, aeration basins, and clarifiers
Water distributors made from wedge wire offer uniform flow distribution across the entire treatment surface. In processes like biological treatment or sedimentation, uneven flow can lead to process inefficiencies and reduced performance.
Wedge Wire Distributor | Header Lateral Distributor Assemblies | Hub Header Lateral Screen in Vessel |

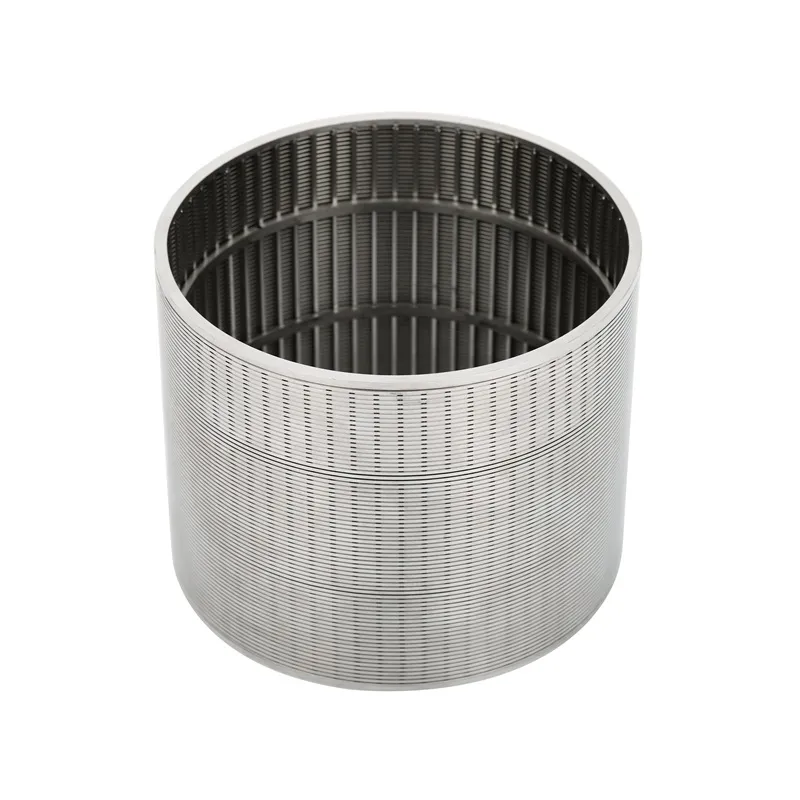

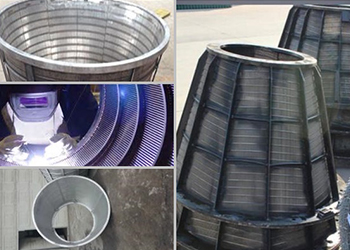

3. Wedge Wire Basket - Robust Support for Coarse Solids Separation
Application: Pre-screening of influent wastewater, grit, and sludge handling
Wedge wire baskets are cylindrical or conical filters designed to intercept large solids before they enter downstream treatment units. Their self-cleaning design and high load capacity make them ideal for the initial stages of wastewater processing, protecting pumps and fine screens from damage and extending their service life.
Coal Centrifuge Basket | Wedge Wire Screen Basket |

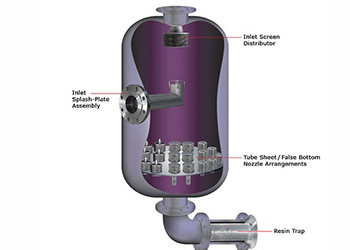

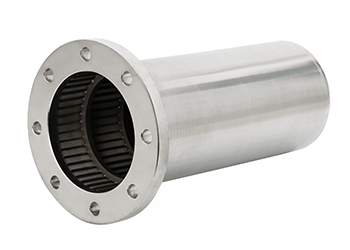

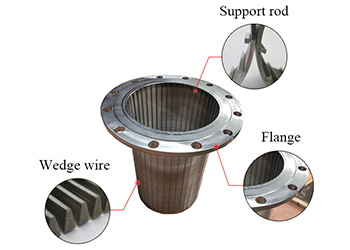

4. Resin Trap - Protection Against Resin and Media Loss
Application: Safeguarding downstream equipment in ion exchange and tertiary polishing
Resin traps are vital in preventing costly media loss from ion exchange systems or polishing filters.
Resin Trap Filter | Ion Exchange Resin Trap | Wedge Wire Resin Trap |

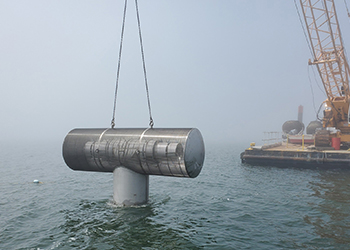

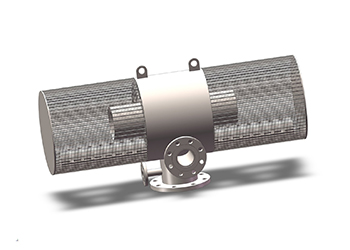

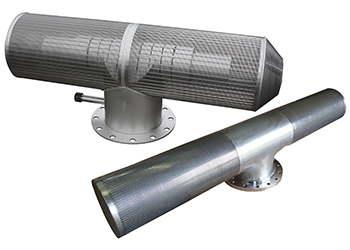

5. Intake Screen - The First Line of Defense in Water Inlet Systems
Application: Surface water intake for municipal and industrial wastewater facilities
Wedge wire intake screens are positioned at the point where water enters the treatment plant, filtering out large debris such as leaves, sticks, and aquatic life. Designed for high-capacity, low-maintenance operation, these screens protect treatment systems and ensure compliance with environmental regulations, including fish protection standards.
Water Intake Screen | Wedge Wire Intake Screen | Seawater Intake Screen |

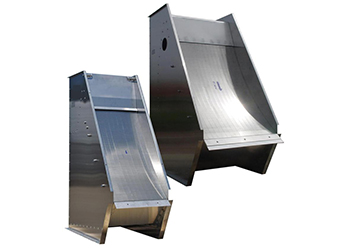

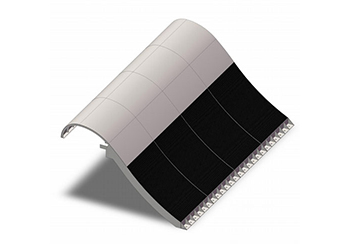

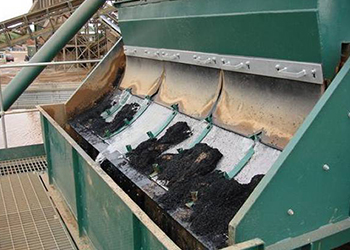

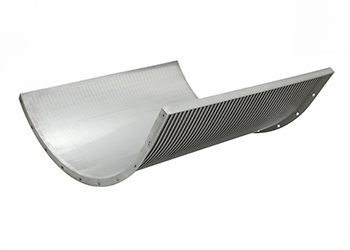

6. Sieve Bend Screen - Gravity-Driven Solids Separation
Application: Pre-treatment and primary screening in municipal wastewater
Sieve bend screens, also known as curved screens, are gravity-fed systems used to remove fine solids before biological treatment stages. Wastewater flows over a curved wedge wire panel, and solids are separated by gravity as water passes through the screen. This simple yet efficient method reduces load on secondary treatment systems and lowers energy usage.
Sieve Bend Screen | Hydro Sieve Static Screen | DSM Screen |

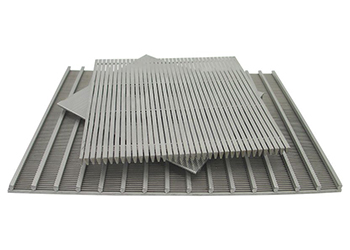

7. Wedge Wire Panel - Modular Screening Versatility
Application: Custom screening in channels, tanks, and overflow systems
Flat wedge wire panels are used as modular screening elements in various parts of a wastewater facility.
Wedge Wire Screen Panel | Johnson Screen Panel |

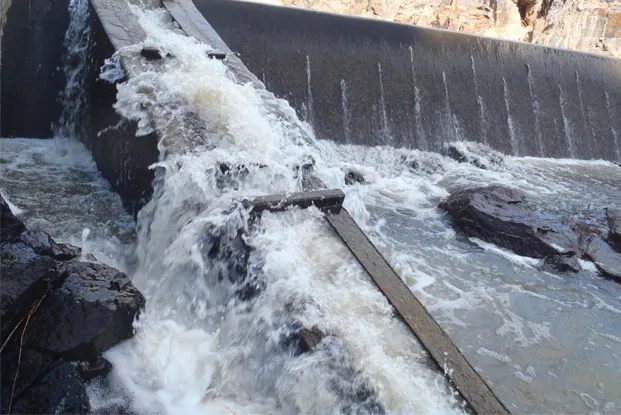

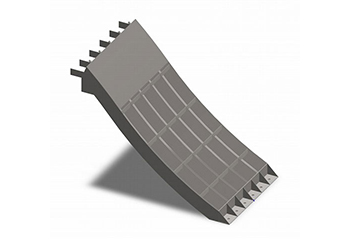

8. Coanda Screen - High-Capacity Screening Under Open Channel Flow
Application: Stormwater overflow, high-volume screening stations
Coanda screens are engineered to utilize the Coanda effect, allowing water to adhere to a curved wedge wire surface while solids slide off. They are ideal for handling variable flow rates and large debris loads, especially in overflow systems and stormwater treatment applications.
Wedge Wire Coanda Screen | Coanda Intake Screen | River Water Coanda Screen |

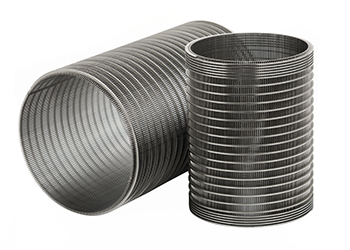

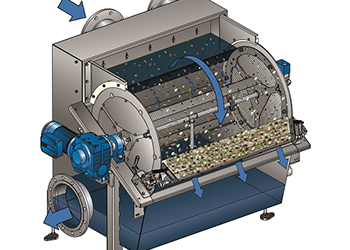

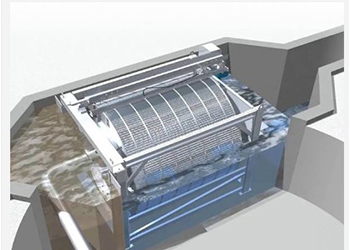

9. Rotary Drum Screen - Continuous Automatic Screening
Application: Fine solids removal in primary and secondary treatment
Rotary drum screens are rotating cylindrical wedge wire filters that remove fine particles from wastewater. As water enters the drum, solids are trapped on the screen surface and removed by a cleaning mechanism. Common in municipal and industrial plants, rotary drum screens offer continuous, automated filtration with minimal operator intervention, enhancing overall system efficiency.
Wedge Wire Cylinder | Rotary Drum Screen | Wedge Wire Trommel Screen |
Wedge wire screen products have become indispensable in modern wastewater treatment systems, offering unmatched performance, longevity, and customization. Whether you're designing a new facility or upgrading an existing one, integrating wedge wire components such as filter nozzles, water distributors, baskets, resin traps, and rotary drum screens will enhance reliability and efficiency.
