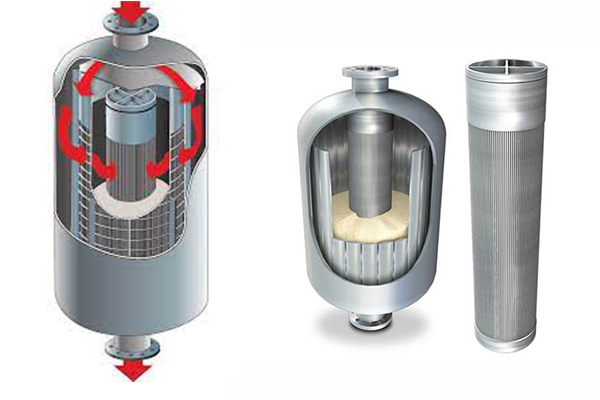

Wedge Wire Reactor Internals: Failure Problems and Maintenance Guide

Wedge wire reactor internals are exposed to continuous catalyst loading, fluid flow and operating stresses during reactor service. Over time, problems such as catalyst leakage, plugging, uneven flow distribution and component damage may affect reactor performance. YUBO manufactures customized wedge wire scallops, center pipes, distributors and support grids for radial flow reactor applications.

Common Failure Problems of Wedge Wire Reactor Internals

Wedge wire reactor internals are designed to provide catalyst retention, fluid distribution and mechanical support inside radial flow reactors. Although wedge wire structures offer high strength and long service life, operating conditions, catalyst properties and installation factors can affect their performance over time.

The most common problems are related to flow restriction, catalyst migration and structural degradation.

Catalyst Leakage from Reactor Internals

Catalyst leakage is one of the most critical problems in reactor internal systems.

When catalyst particles pass through damaged or improperly selected wedge wire openings, it may lead to:

• Catalyst loss

• Reduced reactor efficiency

• Downstream contamination

• Uneven catalyst bed performance

Common causes include:

• Incorrect Slot Opening Selection

The slot opening must match the catalyst particle size and process requirements. Excessive opening size may reduce catalyst retention capability.

• Wedge Wire Damage

Long-term operation, mechanical impact or corrosion may damage the screen surface and create unwanted openings.

• Poor Installation or Assembly

Incorrect installation may cause gaps between internal components, affecting catalyst containment.

Proper slot design, accurate manufacturing and quality inspection are important to prevent catalyst leakage.

Plugging and Fouling Problems

Reactor internals require sufficient open area to maintain stable fluid flow. Over time, deposits, catalyst fines or process impurities may accumulate on wedge wire surfaces.

Typical symptoms include:

• Increased pressure drop

• Reduced flow capacity

• Uneven fluid distribution

Plugging problems may occur in:

• Wedge wire scallops

• Center pipes

• Distributors

• Support grids

The risk of plugging can be reduced through appropriate slot design, sufficient open area and selecting suitable wedge wire configurations for the operating environment.

Uneven Flow Distribution Inside Reactor

Uniform flow distribution is essential for radial flow reactors.

Damaged or blocked reactor internals may cause:

• Localized flow channels

• Uneven catalyst utilization

• Reduced reactor performance

Possible causes include:

• Partial blockage of wedge wire openings

• Deformation of internal components

• Improper internal configuration

Regular inspection helps identify flow-related issues before they affect reactor operation.

Mechanical Damage of Reactor Internals

Reactor internals operate under demanding conditions involving catalyst weight, pressure and temperature changes.

Mechanical problems may include:

• Deformed support grids

• Damaged weld joints

• Bent wedge wire components

Common causes:

• Excessive mechanical loading

• Improper transportation or installation

• Long-term operating stress

High-quality welding, suitable materials and correct installation procedures are essential for improving service reliability.

Reactor Internals Inspection Checklist

During reactor shutdown or maintenance periods, engineers can inspect the condition of wedge wire internals through several key points:

1. Wedge Wire Surface Condition

Check for:

Broken wires

Surface damage

Wear or corrosion

2. Slot Opening Condition

Verify:

Slot blockage

Slot deformation

Abnormal opening changes

3. Welding and Support Structure

Inspect:

Weld integrity

Component alignment

Support grid deformation

Catalyst Retention Performance

Check whether internal components continue to provide reliable catalyst support.

When Should Wedge Wire Reactor Internals Be Replaced?

Replacement may be required when reactor internals show:

• Severe catalyst leakage

• Significant mechanical damage

• Reduced flow performance

• Excessive corrosion or wear

For reactor revamp projects, replacement of internal components can also improve reactor performance without replacing the complete vessel.

YUBO provides customized replacement solutions based on:

• Existing reactor drawings

• Component dimensions

• Material requirements

• Slot opening specifications

How YUBO Supports Reactor Internals Replacement Projects

As a wedge wire reactor internals manufacturer, YUBO supplies customized components for refinery and petrochemical applications.

Our products include:

• Wedge wire scallops

• Center pipes

• Wedge wire distributors

• Catalyst support grids

The manufacturing process includes technical review, wedge wire fabrication, welding, dimensional inspection and customized delivery.

By combining manufacturing experience with wedge wire technology, YUBO helps customers replace damaged reactor internals and maintain reliable reactor operation.

FAQ

1. What causes catalyst leakage in wedge wire reactor internals?

Catalyst leakage is usually caused by incorrect slot opening selection, damaged wedge wire surfaces or installation problems.

2. How can reactor internals plugging problems be reduced?

Proper slot design, sufficient open area and suitable wedge wire configuration can help reduce plugging risks.

3. Can damaged reactor internals be replaced?

Yes. Components such as scallops, center pipes, distributors and support grids can be manufactured as replacement parts according to existing reactor requirements.

4. What materials are used for wedge wire reactor internals?

Common materials include stainless steel grades such as SS304 and SS316L. Other materials can be customized based on operating conditions.
