Catalyst Leakage in Wedge Wire Reactor Internals: Causes and Prevention

Catalyst retention is a basic function of wedge wire reactor internals in radial flow reactors. Scallops, center pipes and other screened components must allow process fluid to pass while keeping catalyst particles within the intended bed.

When catalyst appears downstream of the screen system, the problem may come from the slot opening, damaged wedge wire, failed welds or gaps between components. Finding the actual leakage path is more useful than simply replacing the entire internal assembly.

More Failure Problems and Maintenance of Wedge Wire Reactor Internals ⬅️

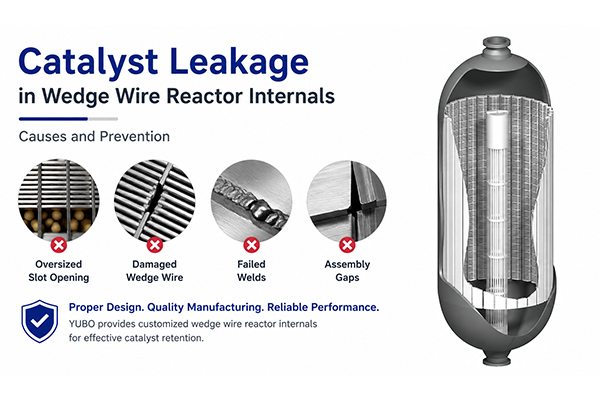

What Causes Catalyst Leakage?

1. Incorrect Slot Opening

Slot opening is one of the first points to check when catalyst leakage occurs.

The opening needs to be compatible with the catalyst particle size and the retention requirements of the reactor. An opening that is too large can allow particles or fines to pass through the screen.

However, reducing the slot opening without considering the required flow area is not a universal solution. A suitable wedge wire configuration needs to balance catalyst retention with fluid passage and operating requirements.

2. Wedge Wire Wear or Damage

Long-term operation can expose screen surfaces to mechanical loading, abrasion and corrosive conditions.

Possible signs include:

Broken or displaced wedge wires

Local deformation

Enlarged openings

Corrosion or surface deterioration

A small damaged area can create a direct path for catalyst particles to migrate through the screen. During shutdown inspection, the wedge wire surface should therefore be checked rather than relying only on the overall appearance of the component.

3. Damaged Welds and Connections

Catalyst leakage does not always originate from the wedge wire slot itself.

Welded joints, end connections and component interfaces can also become leakage paths if they are damaged or do not fit correctly. For fabricated reactor internals, weld integrity and dimensional accuracy are therefore important parts of catalyst retention.

This is particularly relevant for assemblies made from multiple wedge wire sections rather than a single screen element.

4. Gaps Between Internal Components

Improper alignment or assembly can leave gaps between adjacent components.

Depending on the reactor configuration, areas around scallops, center pipes, support structures or connections may require close dimensional control. A screen with the correct slot opening can still lose catalyst if particles can bypass the screened surface through an unintended gap.

Where Can Catalyst Leakage Occur?

Different wedge wire components perform different functions inside a reactor.

Wedge Wire Scallops

Scallops form part of the screened collection or distribution zone in radial flow reactors. Their wedge wire surface allows fluid to pass while retaining the catalyst bed. Their geometry, slot opening and installation condition all affect catalyst retention.

Reactor Center Pipes

The center pipe is another important screened component in radial flow systems. Its screen surface must provide the required flow area while preventing catalyst from entering the collection or distribution passage.

Support Grids

Support grids carry the catalyst bed and can also incorporate wedge wire screening. Deformation, damaged sections or gaps in the assembly can affect catalyst retention and support.

The actual leakage location should be determined from the reactor configuration rather than assuming that every catalyst retention problem comes from the same component.

Signs of Catalyst Leakage

Catalyst leakage may not always be visible during normal operation. Depending on the reactor system, engineers may investigate when they observe:

• Unexpected catalyst loss

• Catalyst fines appearing downstream

• Changes in operating performance

• Abnormal flow behavior

• Visible screen or weld damage during shutdown inspection

These signs should be considered together with operating history and inspection findings before deciding whether an internal component requires replacement.

How to Prevent Catalyst Leakage

Reliable catalyst retention starts with the complete wedge wire assembly rather than slot size alone.

• Match the Slot Opening to the Application

Catalyst particle characteristics and required retention should be considered when determining the slot opening.

• Control Wedge Wire Fabrication

Accurate wire placement and dimensional control help maintain consistent openings across the screened surface.

• Check Weld and Assembly Quality

Welded joints, connections and interfaces should be inspected to minimize potential bypass paths.

• Verify the Finished Component

Dimensional inspection and visual checks before installation can identify deformation, damaged wires or assembly problems before the internals enter service.

When Should a Reactor Internal Be Replaced?

Replacement should be considered when catalyst leakage is associated with damaged wedge wire, unacceptable slot deformation, failed welds, severe corrosion or structural damage.

For an existing reactor, replacement does not necessarily mean replacing the complete internal system. Individual components such as scallops, center pipes or support grids can be manufactured according to the existing reactor dimensions and requirements.

YUBO manufactures customized wedge wire reactor internals for radial flow applications, including scallops, center pipes, distributors and catalyst support grids. Replacement projects can be matched to existing drawings, dimensions, materials and slot specifications.

FAQ

1. What is the main cause of catalyst leakage in wedge wire reactor internals?

Common causes include unsuitable slot openings, damaged wedge wire, failed welds and gaps between internal components.

2. Can damaged wedge wire reactor internals be replaced?

Yes. Individual components such as scallops, center pipes and support grids can be manufactured as replacement parts when the required dimensions and specifications are available.

3. Does catalyst leakage always mean the entire reactor internal system must be replaced?

No. The affected component and leakage path should first be identified. In some cases, replacing a damaged screen section or individual internal component is sufficient.

4. How can catalyst retention be improved?

Proper slot selection, accurate wedge wire fabrication, reliable welding and dimensional inspection all contribute to effective catalyst retention.
