Resin Traps: Protecting Ion Exchange Systems from Media Loss

Ion exchange systems are widely used in water treatment, power generation, chemical processing, and ultrapure water production. Their performance depends heavily on the integrity of the ion exchange resin. When resin escapes from a vessel, it can reduce treatment efficiency, damage downstream equipment, and increase operating costs. Resin traps are designed to address this specific risk by capturing escaped resin before it leaves the system.

What Is a Resin Trap?

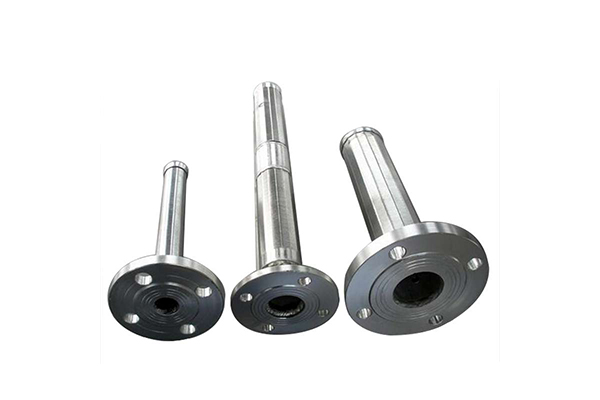

A resin trap is a mechanical retention device installed downstream of an ion exchange vessel to capture ion exchange resin beads that escape due to screen failure, distributor damage, or abnormal operating conditions.

Resin traps are commonly constructed from stainless steel wedge wire screens or slotted metal baskets. Their slot openings are precisely sized to allow treated water to pass while retaining resin particles.

In practical terms, a resin trap serves as a final safeguard, preventing resin loss and protecting downstream piping, valves, pumps, and membranes.

Why Resin Loss Occurs in Ion Exchange Systems

Resin loss is not uncommon, especially in systems operating continuously or under demanding conditions. Common causes include:

• Damage or wear to underdrain laterals or hub assemblies

• Improper backwashing or hydraulic shock

• Aging resin screens with enlarged slots

• Unexpected pressure fluctuations

• Installation or maintenance errors

Even small amounts of resin carryover can lead to fouling, blockage, or reduced performance in downstream equipment.

How Resin Traps Work

A resin trap is typically installed in-line on the outlet piping of an ion exchange column. As water exits the vessel:

• Process fluid flows freely through the resin trap screen.

• Escaped resin beads are physically retained by the screen's slot openings.

• Accumulated resin can later be removed during inspection or maintenance.

Because wedge wire screens have a smooth, non-clogging profile, resin traps maintain low pressure drop while offering high mechanical strength and long service life.

Common Resin Trap Designs and Materials

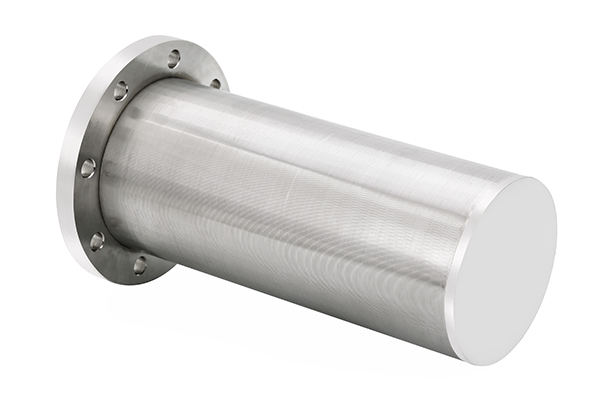

✔ Wedge Wire Resin Traps

• V-wire or wedge-shaped wire profile

• High open area and precise slot control

• Excellent resistance to clogging

✔ Stainless Steel Resin Traps

• Typically manufactured from 304 or 316 stainless steel

• Corrosion-resistant and suitable for industrial water treatment

• Long-term dimensional stability

✔ Basket and Inline Configurations

• Basket-type resin traps for compact systems

• Flanged or threaded inline resin traps for easy installation

• Custom designs for large flow rates or pressure vessels

Where Are Resin Traps Used?

Resin traps are widely applied across multiple industries, including:

• Water treatment plants (softening, demineralization, mixed bed systems)

• Power plants (boiler feed water and condensate polishing)

• Pharmaceutical and electronics manufacturing (ultrapure water systems)

• Chemical processing facilities

• Food and beverage water treatment

Any system using ion exchange resin benefits from a resin trap, especially where downtime or contamination risks are high.

Key Benefits of Using Resin Traps

• Prevents resin loss and extends resin service life

• Protects downstream equipment from blockage and abrasion

• Improves system reliability and operational stability

• Reduces maintenance frequency and unplanned shutdowns

• Supports regulatory and quality compliance in sensitive applications

These benefits make resin traps a low-cost addition with high operational value.

Maintenance and Inspection Considerations

Resin traps are generally low-maintenance components, but routine inspection is recommended:

• Monitor pressure drop across the resin trap

• Inspect during scheduled system shutdowns

• Clean or remove captured resin as needed

• Check for mechanical damage or slot deformation

Properly maintained resin traps can operate reliably for many years without replacement.

Resin Traps vs. Other Resin Retention Methods

Resin traps are not a replacement for internal vessel components such as underdrain systems or lateral screens. Instead, they serve as a secondary protection layer.

• Underdrain systems retain resin inside the vessel

• Lateral or hub screens distribute flow evenly

• Resin traps capture resin only if upstream components fail

Using these elements together significantly reduces the risk of resin-related failures.

Frequently Asked Questions

1. What is the main purpose of a resin trap?

A resin trap prevents ion exchange resin from leaving the system and damaging downstream equipment.

2. Where should a resin trap be installed?

It is typically installed downstream of the ion exchange vessel, on the outlet line.

3. What slot size is used for resin traps?

Slot sizes are selected based on resin bead size and system flow requirements, ensuring resin retention without excessive pressure drop.

4. Are resin traps required for all ion exchange systems?

While not mandatory, resin traps are strongly recommended for critical systems where reliability and protection are priorities.

Resin traps play a crucial role in protecting ion exchange systems from media loss. By capturing escaped resin, they help maintain treatment performance, protect downstream equipment, and reduce long-term operating costs. When designed with high-quality wedge wireor stainless steel screens and installed correctly, resin traps provide a simple, durable, and effective safeguard for industrial and municipal ion exchange applications.

For operators seeking to improve system reliability and minimize risk, resin traps are a proven and practical solution.
