A static wedge wire screen is a non-powered, gravity-fed filtration device used for solid–liquid separation. It works by allowing liquid to pass through precision V-shaped wire slots while solids slide down the screen surface for discharge. Its self-cleaning design, high open area, and low maintenance requirements make it widely used in wastewater treatment and industrial processes.

Static wedge wire screens are widely used in wastewater treatment, industrial filtration, and process water management. Unlike rotating or vibrating screens, they operate without moving parts or external power. This makes them reliable, energy-efficient, and easy to maintain.

What Is a Static Wedge Wire Screen?

A static wedge wire screen is a fixed screening device designed for gravity-driven solid–liquid separation. It is constructed using V-shaped (wedge) profile wires welded onto support rods to form a continuous slot surface.

Key characteristics:

• No moving parts

• No power consumption

• Continuous slot openings

• Self-cleaning screen surface

Because the screen remains stationary during operation, it is commonly referred to as a static screen or non-powered wedge wire screen.

What Is Wedge Wire and Why Is It Used?

✔ Wedge Wire Structure

Wedge wire, also known as Vee wire or profile wire, has a triangular cross-section. The narrow edge faces the feed side, while the wider base faces the discharge side.

This geometry creates:

• Precision-controlled slot openings

• A high open area

• Resistance to clogging and blinding

✔ Continuous Slot Design

Unlike perforated plates, wedge wire screens use continuous slots rather than round holes. This allows:

• Higher flow rates

• More accurate particle separation

• Easier passage of filtrate

How Does a Static Wedge Wire Screen Work?

1. Influent Distribution

Wastewater or process liquid flows evenly across the top of the inclined screen.

2. Gravity-Driven Filtration

Liquid passes through the wedge wire slots due to gravity, without pressure or pumping.

3. Solids Retention

Solids larger than the slot opening remain on the screen surface.

4. Self-Cleaning Action

As retained solids slide downward, they do not wedge into the slots because the slot width increases in the flow direction.

5. Separated Discharge

Filtrate exits through the screen

Solids are discharged at the lower end of the screen

This simple mechanism enables continuous operation with minimal operator intervention.

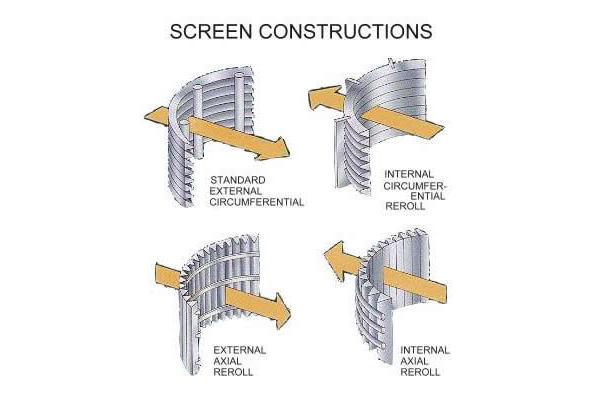

Common Design Configurations

Static wedge wire screens are available in multiple configurations depending on application requirements:

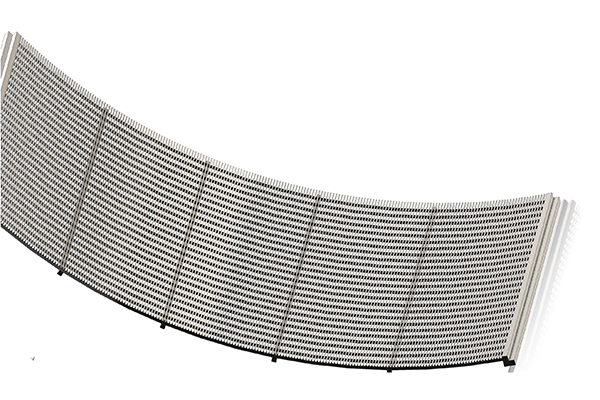

• Flat panel static screens

• Curved static wedge wire screens

• Inclined wedge wire screens

• Custom wedge wire screen panels

Slot openings typically range from 0.25 mm to 3.0 mm, depending on solids size and separation goals.

Materials and Construction

Most static wedge wire screens are manufactured from stainless steel, commonly:

• Stainless steel 304

• Stainless steel 316

These materials provide:

• Corrosion resistance

• Long service life

• Suitability for harsh industrial environments

For special applications, custom alloys can be used.

Where Are Static Wedge Wire Screens Used?

✔ Wastewater Treatment Applications

Municipal wastewater screening

Industrial wastewater pretreatment

Primary solids removal

Sludge thickening support

✔ Industrial Process Applications

Food and beverage processing

Pulp and paper mills

Mining slurry screening

Chemical and petrochemical filtration

Their ability to operate without power makes them suitable for remote or continuous-duty installations.

Advantages of Static Wedge Wire Screens

• No energy consumption

• Low operating and maintenance cost

• High hydraulic capacity

• Excellent fine solids removal

• Long service life

• Simple installation

These benefits explain why static wedge wire screens are often selected as primary or secondary screening devices.

Limitations to Consider

While highly effective, static wedge wire screens are not suitable for every scenario:

• Not ideal for very high solids loading without pretreatment

• Limited adaptability once installed

• Performance depends on proper influent distribution

Understanding these factors ensures the correct design and sizing of the system.

Static Wedge Wire Screen vs Other Screen Types

How to Select the Right Static Wedge Wire Screen

Key selection criteria include:

• Slot opening size

• Screen width and length

• Installation angle

• Flow rate and solids load

• Material compatibility

Proper sizing is critical for achieving stable, long-term performance.

Frequently Asked Questions (FAQ)

1. Does a static wedge wire screen require electricity?

No. It operates entirely by gravity and does not require power.

2. What particle sizes can it remove?

Typically solids larger than the selected slot opening, often from 0.25 mm upward.

3. Is maintenance required?

Maintenance is minimal and usually limited to periodic inspection and wash-down.

4. Can it be customized?

Yes. Slot size, material, and screen geometry can be tailored to specific applications.

5. How long does a static wedge wire screen last?

With stainless steel construction, service life often exceeds 10–15 years under normal conditions.

A static wedge wire screen is a simple yet highly effective filtration solution for solid–liquid separation. Its gravity-driven operation, self-cleaning wedge wire design, and durability make it a preferred choice in wastewater treatment and industrial processes. When properly designed and applied, it delivers consistent performance with minimal operating cost.
