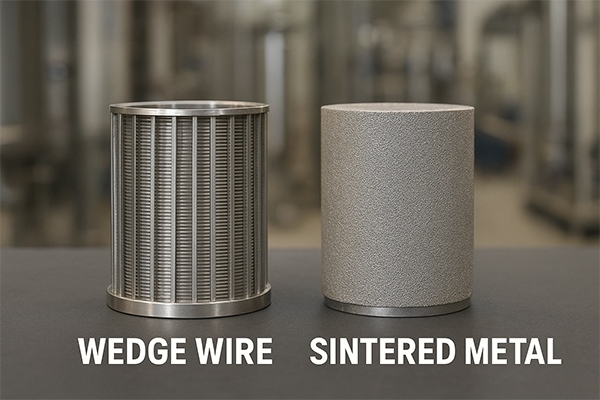

Wedge Wire vs. Sintered Metal Filters: Which Performs Better?

In modern industrial filtration, precision, durability, and reliability are non-negotiable. Engineers and plant operators frequently face a crucial decision: whether to use wedge wire filters or sintered metal filters.

Both are made from high-quality stainless steel and are built for harsh operating environments, but their design, performance, and applications differ significantly. Understanding these differences can help you select the most efficient solution for your system.

1. Wedge Wire Technology vs. Sintered Metal Filters

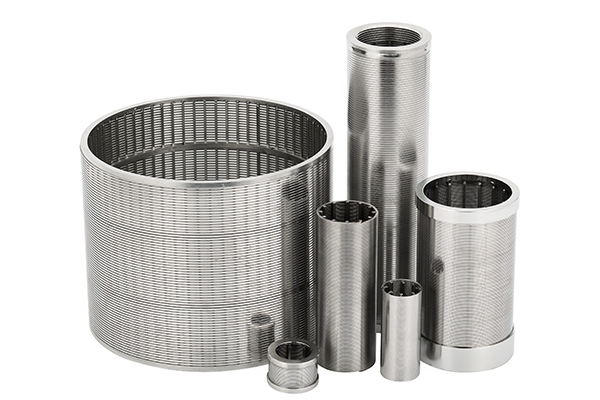

✔ Wedge Wire Filters

A wedge wire filter (also known as a wedge wire screen or profile wire filter) is made by welding V-shaped wires onto support rods, forming continuous slot openings.

This structure provides high mechanical strength, excellent flow capacity, and easy cleaning — ideal for liquid-solid separation, water treatment, and industrial filtration systems where durability and low maintenance matter.

Key features:

• Precise slot openings for accurate particle retention

• High open area ensures efficient flow rate

• Rigid welded construction resists deformation

• Excellent cleanability, reusable after backwashing

• Manufactured from stainless steel 304, 316L, or Duplex

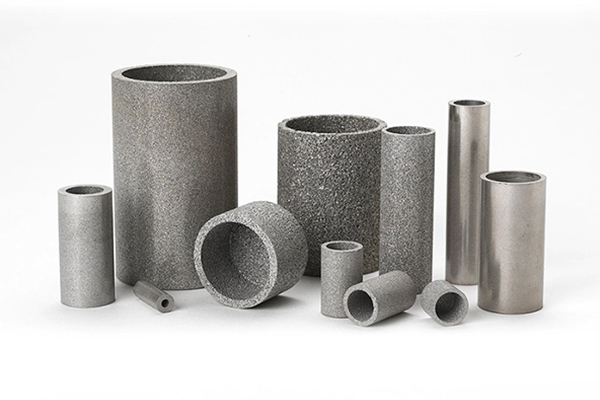

✔ Sintered Metal Filters

Sintered metal filtersare produced by bonding multiple layers of metal mesh or powder under high heat and pressure. This creates a rigid porous structure with uniform pore size and consistent filtration performance.

They are commonly used for high-precision filtration and gas/liquid purification, especially in chemical processing, pharmaceuticals, and food industries.

Key features:

• Uniform pore size distribution for consistent filtration

• High resistance to temperature and pressure

• Excellent corrosion resistance

• Cleanable and reusable through backflushing or ultrasonic cleaning

• Common materials: 316L stainless steel, nickel alloys, titanium

2. Performance Comparison

Wedge wire filters excel in high-flow, low-clogging environments, while sintered metal filters dominate high-precision and high-pressure applications.

3. When to Choose a Wedge Wire Filter

• You need continuous flow filtration with low maintenance

• Your process involves large particles or fibrous solids

• You require strong resistance to clogging and easy cleaning

Applications include:

Raw water intake and desalination

Food and beverage processing

Mining and coal slurry filtration

Petrochemical and wastewater treatment

4. When to Choose a Sintered Metal Filter

• You need ultra-fine filtration for liquids or gases

• Your system operates under high temperature or pressure

• You require high purity and uniform pore distribution

Common applications:

Chemical processing and catalyst recovery

Pharmaceutical production

Gas filtration and hydraulic systems

High-purity water treatment

5. Material and Design Considerations

The choice between 304, 316L, Duplex, or titanium depends on operating conditions such as temperature, pressure, and corrosion potential.

For corrosive liquids like seawater or acidic media, 316L or Duplex stainless steel offers better resistance.

For high-temperature gases or aggressive chemicals, sintered titanium or nickel alloys provide optimal durability.

Engineering tip:

Always match filter material and geometry to the process media — the right combination ensures longer lifespan and stable performance.

6. Cost, Maintenance, and Sustainability

While sintered filters are more expensive upfront, they offer longer service life in specialized environments.

Wedge wire filters, on the other hand, provide exceptional cost efficiency due to their washable design and lower replacement frequency.

Both types are recyclable and align with sustainable manufacturing goals, reducing industrial waste and energy consumption.

There's no universal answer to which performs better — Wedge Wire vs. Sintered Metal Filters.

If your process demands high flow, robustness, and minimal fouling, choose wedge wire.

If your system requires precision filtration, pressure resistance, and consistent pore structure, sintered metal filters are the right choice.

For most industrial operations, many engineers integrate both technologies across stages — wedge wire for primary filtration and sintered metal for final polishing — achieving the perfect balance between performance and efficiency.

FAQ: Wedge Wire vs. Sintered Metal Filters

1. Which filter lasts longer?

Both filters are durable, but their lifespan depends on the application. Sintered filters generally last longer in high-pressure, high-temperature environments.

2. Can wedge wire filters handle fine filtration?

Yes, but they are more suitable for medium-to-coarse filtration. For ultra-fine precision, sintered metal filters perform better.

3. Are both filters reusable?

Absolutely. Both wedge wire and sintered metal filters can be cleaned and reused multiple times, making them sustainable and cost-effective.

4. Which is more corrosion-resistant?

Sintered filters made from 316L or titanium provide the best corrosion resistance. However, duplex wedge wire screens also perform excellently in seawater applications.

5. Can I use wedge wire and sintered filters together?

Yes. Many systems use wedge wire as a pre-filter and sintered metal for final filtration, ensuring both high flow and fine particle removal.
