Wedge Wire Screens: Complete Design, Types, and Application Guide

Wedge wire screens are precision-engineered filtration components made from V-shaped stainless steel profile wires welded to support rods. They are widely used in water treatment, mining, petrochemical processing, food production, and other industrial filtration systems where strength, durability, and non-clogging performance are essential.

What Is a Wedge Wire Screen?

A wedge wire screen is a filtration element constructed from continuous V-shaped wires resistance-welded onto perpendicular support rods. The spacing between the profile wires forms precise slot openings that allow liquid or gas to pass while retaining solids.

The defining characteristic of wedge wire technology is the V-shaped profile. The slot opening is narrow on the surface and gradually widens inward, which reduces clogging and improves flow performance.

Because of this geometry, wedge wire screens are commonly described as:

• Non-clogging screens

• Self-cleaning filtration elements

• High open-area industrial screens

How Wedge Wire Screens Work

The working principle is based on controlled slot filtration:

• Fluid approaches the screen surface.

• Solids larger than the slot opening are retained.

• Smaller particles pass through the slots.

• The inward-widening slot reduces particle buildup.

• Continuous welding ensures structural rigidity under pressure.

This design allows wedge wire screens to operate effectively in high-flow and high-solids environments without rapid blinding.

Key Design Components

Understanding the structure helps engineers select the correct configuration.

✔ Profile Wire (V-Wire)

• Determines slot opening size

• Influences strength and open area

Typically made from stainless steel (304, 316L, duplex)

✔ Support Rods

• Provide mechanical stability

• Maintain slot uniformity

• Designed based on pressure and load requirements

✔ Slot Size

Slot openings typically range from:

• 0.05 mm (fine filtration)

• 0.1–0.5 mm (water treatment)

• 0.75–2 mm (dewatering and screening)

Slot size selection directly impacts flow rate, particle retention, and pressure drop.

Main Types of Wedge Wire Screens

Different applications require different geometries.

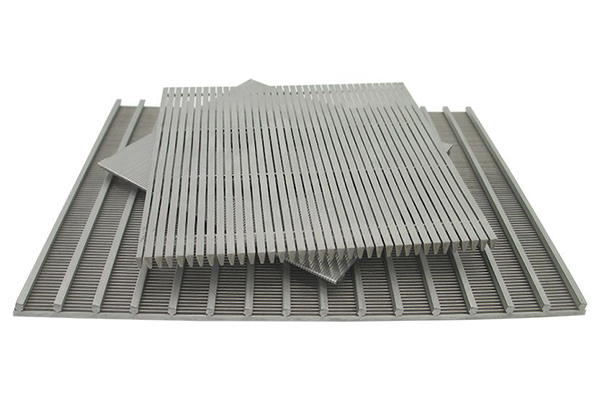

✔ Flat Panels

Used in:

• Static screens

• Sidehill screens

• Gravity filtration systems

Advantages:

• Simple installation

• High open area

• Easy cleaning

✔ Cylindrical Screens

Used in:

• Water intake systems

• Sand filters

• Pressure vessels

Advantages:

• Withstands internal or external pressure

• Uniform radial flow distribution

✔ Drum Screens

Used in:

• Wastewater treatment

• Food processing

• Pulp and paper

Advantages:

• High throughput

• Continuous operation

✔ Conical or Basket Screens

Used in:

• Centrifuges

• Mining dewatering

• Solid-liquid separation

Advantages:

• Enhanced solids discharge

• Strong mechanical resistance

Wedge Wire vs Other Filtration Media

Wedge wire is preferred when precise slot control, durability, and long service life are required.

Common Industrial Applications

✔ Water Treatment

• Sand filter laterals

• Intake screens

• Underdrain systems

✔ Mining & Mineral Processing

• Dewatering screens

• Centrifuge baskets

• Slurry separation

✔ Chemical & Petrochemical

• Catalyst support grids

• Reactor internals

• Resin traps

✔ Food & Beverage

• Process water filtration

• Solid-liquid separation

How to Select the Right Wedge Wire Screen

Engineers typically evaluate the following:

✔ Required Slot Size

Based on:

Particle size distribution

Required retention efficiency

✔ Flow Rate

Higher flow rates require:

Larger open area

Stronger support structure

✔ Pressure Conditions

Internal pressure vs external pressure

Vacuum vs positive pressure systems

✔ Material Selection

304 stainless steel (general industrial use)

316L (corrosive environments)

Duplex stainless steel (high chloride content)

✔ Cleaning Method

Backwashing

Mechanical cleaning

Chemical cleaning

Proper specification prevents premature failure and reduces maintenance costs.

Why Wedge Wire Screens Are Considered Non-Clogging

The V-shaped profile creates a slot that widens inward. When particles attempt to enter the slot, they are less likely to wedge permanently because the internal opening is larger than the surface gap.

This design significantly reduces:

• Screen blinding

• Pressure buildup

• Maintenance frequency

Maintenance and Service Life

Wedge wire screens are known for long operational life when:

• Correct slot size is selected

• Material matches chemical environment

• Regular cleaning is performed

In many industrial systems, stainless steel wedge wire components operate for several years without replacement.

Frequently Asked Questions

1. Why are wedge wire screens non-clogging?

The slot opening is narrow at the surface and widens inward, reducing particle accumulation and improving self-cleaning performance compared to straight-slot designs.

2. What industries use wedge wire screens?

They are widely used in water treatment, mining, chemical processing, food production, and petrochemical industries.

3. How do I choose the correct slot size?

Slot size should be selected based on the smallest particle that must be retained, expected flow rate, and system pressure conditions.

4. Are wedge wire screens better than perforated plates?

For precision filtration and non-clogging performance, wedge wire screens generally provide superior slot accuracy and longer service life.

Wedge wire screens are precision-engineered filtration components designed for durability, controlled slot accuracy, and non-clogging performance. Their structural integrity and adaptability make them suitable for a wide range of industrial applications, from water treatment to mining and chemical processing.

Selecting the appropriate slot size, material, and configuration ensures optimal performance and long service life in demanding environments.
