Stainless Steel vs Plastic Filter Nozzles: Which Lasts Longer?

The choice of filter nozzle material affects not only filtration performance but also the total operating cost of water treatment systems. Engineers frequently ask a direct question: Which material lasts longer—stainless steel or plastic?

1. What Really Controls the Lifespan of Filter Nozzles?

In industrial and municipal filtration systems, nozzle lifespan is shaped by five measurable factors:

Any material comparison must be evaluated against these conditions.

2. Lifespan of Plastic Filter Nozzles (PP / ABS / PA)

Plastic filter nozzles remain popular in basic sand filters and light-duty applications. However, their performance degrades faster in demanding environments.

• Typical Lifespan

3–5 years in standard operating conditions

1–2 years in high-temperature or chemically aggressive environments

• Performance Characteristics

Tensile strength: 30–45 MPa (depending on polymer type)

Maximum recommended operating temperature: 45–60°C

• Failure rate in continuous backwash cycles: Higher (material fatigue + thread deformation)

Common Failure Modes

• Cracking around the stem or threaded area

• Deformation under high backwash pressure

• UV-aging damage during long-term storage

• Slot wear from abrasive media

Plastic nozzles are suitable for light mechanical loads but not for long-term industrial duty cycles.

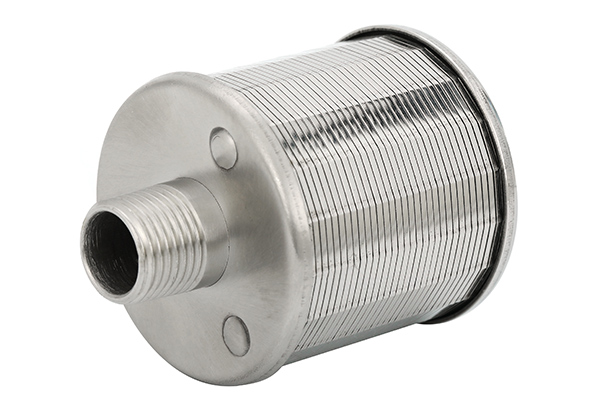

3. Lifespan of Stainless Steel Filter Nozzles (304 and 316L Wedge Wire)

Stainless steel nozzles, especially wedge wire designs, are engineered to handle heavy flow, high pressure, and long service periods.

• Typical Lifespan

8–15 years in municipal and industrial water systems

10–20+ years in controlled environments with stable pressure and chemistry

• Performance Characteristics

Tensile strength: 520–620 MPa

Maximum operating temperature: >300°C

• Corrosion resistance level: High, especially with 316L stainless steel

• Abrasion resistance: Very High due to wedge wire construction

Common Failure Modes

• Very limited; most failures relate to system misuse, not material weakness

• Occasional pitting in extremely aggressive chloride environments

In real-world applications, stainless steel nozzles can last 3–5 times longer than plastic nozzles.

4. Direct Comparison: Stainless Steel vs. Plastic Nozzles

Material Comparison Table

Stainless steel filter nozzles last significantly longer than plastic filter nozzles under almost all operating conditions.

5. Which Nozzle Provides Better Long-Term Value?

When evaluating cost over a 10-year operating period, stainless steel has a measurable advantage.

Cost Comparison Over 10 Years

Even though stainless steel costs more upfront, it usually becomes more economical within 2–3 years.

6. When Should You Choose Each Material?

Choose Stainless Steel When:

The system operates continuously

Sand, resin, or suspended solids cause abrasion

Water temperature exceeds 45°C

Backwash pressure is high

Chemical exposure is unpredictable

Downtime must be minimized

Choose Plastic When:

The system runs at low temperatures (<45°C)

Budget constraints are strict

Mechanical loads are low

Chemical exposure is minimal

The system is used intermittently

Frequently Asked Questions

1. Which lasts longer—stainless steel or plastic filter nozzles?

Stainless steel nozzles typically last 8–15 years, outperforming plastic nozzles, which last 3–5 years.

2. Do plastic nozzles deform during backwash?

Yes. Plastic threads and stems often deform under repeated high-pressure cycles.

3. Are stainless steel nozzles resistant to chemicals?

304 and 316L stainless steel provide excellent corrosion resistance in chlorinated and mildly saline environments.

4. Why do many plants upgrade from plastic to stainless steel?

They reduce downtime, limit media leakage, and improve long-term operating reliability.

If the goal is long-term system stability, fewer replacements, and lower total operating costs, stainless steel filter nozzles are the superior choice.

Plastic nozzles remain useful for light-duty systems, but they cannot match the durability of stainless steel in industrial or municipal environments.
