Ion Exchange and Media Filter Internals: A Guide to Nozzles, Laterals and Distributors

In water treatment systems, filtration performance depends on more than the filter media or ion exchange resin inside the vessel. The internal components that support flow distribution, media retention, and collection play an equally important role in system efficiency and reliability.

Whether the application involves water softening, demineralization, activated carbon filtration, or multimedia filtration, properly designed vessel internals help ensure uniform flow patterns, effective backwashing, and long service life. Common internals include filter nozzles, lateral assemblies, distributors, and resin traps, each serving a specific purpose within the filtration process.

Why Vessel Internals Matter in Water Treatment Systems

A media filter or ion exchange vessel's effectiveness depends on how water moves through the system. Poor internal design can lead to uneven flow distribution, channeling, media loss, excessive pressure drop, and reduced treatment efficiency.

Well-designed vessel internals help:

• Distribute influent evenly across the media bed

• Collect treated water efficiently

• Retain filter media or ion exchange resin

• Improve backwash performance

• Reduce hydraulic dead zones

• Support stable long-term operation

For this reason, vessel internals are considered a critical part of the overall filtration system rather than simple accessories.

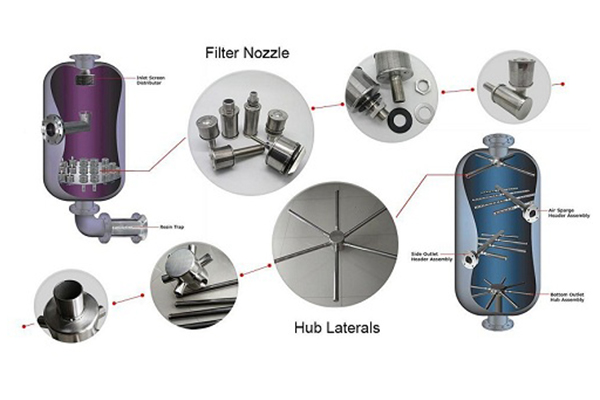

Main Types of Ion Exchange and Media Filter Internals

Several internal components are commonly used in pressure vessels and filtration equipment. Depending on vessel size, operating conditions, and media characteristics, different combinations may be used.

In many filtration systems, filter nozzles and lateral assemblies form part of the underdrain system responsible for supporting media retention and water collection.

Filter Nozzles for Media Retention

Filter nozzles are widely used in ion exchange units, sand filters, activated carbon filters, and other media-based treatment systems.

Their primary function is to retain media while allowing water to pass through with minimal resistance. Proper slot openings help prevent media migration while maintaining adequate flow capacity.

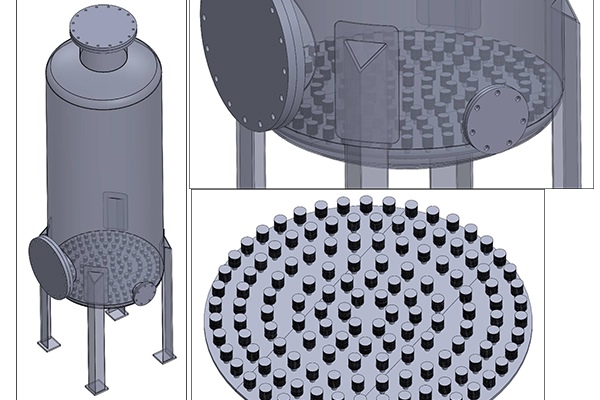

Wedge wire filter nozzlesare commonly selected for industrial applications because of their high open area, mechanical strength, and resistance to clogging. Depending on the process requirements, nozzles may be installed on support plates, false bottoms, or collector assemblies.

Hub Lateral and Header Lateral Systems

Lateral systems are designed to distribute incoming flow or collect treated water across the vessel floor.

A hub lateral system typically consists of a central hub connected to multiple radial laterals. This design is commonly used in circular vessels and provides balanced flow collection across the media bed.

Header lateral systemsuse a header pipe connected to multiple branch laterals. They are often selected for larger vessels where higher flow rates and broader coverage are required.

Both designs help improve flow uniformity and support efficient backwash operation, making them common choices in industrial water treatment facilities.

Wedge Wire Distributors and Collectors

Distributors and collectors are used to manage fluid movement into and out of the vessel.

A distributor helps spread incoming water evenly across the vessel cross-section, reducing localized flow concentrations and improving media utilization. Collectors perform the reverse function by gathering treated water from different areas and directing it toward the outlet.

Uniform distribution and collection contribute to stable filtration performance and help reduce channeling within the media bed.

Wedge wire construction is frequently used for these components because it combines structural strength with excellent hydraulic performance.

Resin Traps and Media Protection

Resin traps are designed to protect downstream equipment from resin carryover.

Although properly designed internals minimize resin loss, abnormal operating conditions, damaged internals, or unexpected flow disturbances can occasionally allow resin beads to escape from the vessel.

A resin trap acts as a secondary safeguard by capturing escaped resin before it reaches pumps, membranes, valves, or other sensitive equipment. These devices are commonly used in applications where downstream protection is critical.

Choosing the Right Vessel Internals Configuration

Selecting vessel internals requires consideration of both process requirements and vessel design.

• For smaller water softeners and compact treatment units, filter nozzles often provide a practical and cost-effective solution.

• Industrial ion exchange systems may require a combination of nozzles, distributors, and resin protection devices to ensure reliable operation and media retention.

• For larger diameter vessels, hub lateral or header lateral systems are frequently preferred because they provide more uniform flow distribution and collection across a wider area.

Factors such as vessel dimensions, media type, operating flow rate, pressure requirements, and maintenance considerations should all be evaluated during system design.

Typical Applications

Ion exchange and media filter internals are used across a wide range of water treatment processes, including:

• Water softening systems

• Demineralization plants

• Activated carbon filters

• Sand filtration systems

• Multimedia filters

• Industrial process water treatment

• Wastewater treatment facilities

Each application may require a different internal configuration to achieve the desired balance of hydraulic performance, media retention, and operational reliability.

Frequently Asked Questions

1. How do vessel internals affect backwash performance?

Vessel internals help distribute backwash water evenly throughout the media bed. Proper distribution improves media expansion, cleaning effectiveness, and overall filtration performance.

2. Can filter nozzles and lateral systems be used in the same vessel?

Yes. Some vessel designs incorporate both filter nozzles and lateral assemblies to meet specific flow distribution, collection, and media retention requirements.

3. When should a resin trap be installed?

A resin trap is commonly used when downstream equipment requires protection from potential resin carryover, particularly in critical ion exchange and demineralization systems.

The performance of an ion exchange vessel or media filter depends on more than the filtration media itself.

Filter nozzles, lateral systems, distributors, and resin traps work together to support flow distribution, media retention, and reliable operation. Selecting the right vessel internals helps improve treatment performance while reducing maintenance requirements and operational risks.

Because vessel size, media characteristics, and process conditions vary between applications, internal configurations should be considered as part of the overall system design rather than as individual components selected in isolation.
