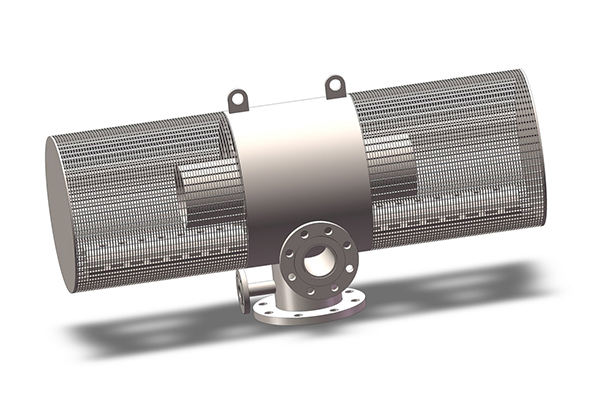

Industrial Water Intake Protection with Johnson Screens

Why Water Intake Protection Matters

Industrial facilities that draw water from rivers, lakes, seas, or cooling channels face one recurring challenge: debris entering the intake system. Unfiltered intake water can damage pumps, reduce flow efficiency, increase energy consumption, and cause costly downtime.

This is why many plants now rely on Johnson-type screens, a proven technology based on V-wire (wedge wire) structure and non-clogging slot geometry. Their design makes them among the most dependable intake protection systems across the power generation, desalination, petrochemical, mining, and municipal industries.

What Are Johnson Type Screens?

Johnson-type screens are cylindrical or panel-shaped wedge wire screensbuilt from:

• V-shaped (triangular) profile wire

• Precise slot openings

• Welded support rods

• Stainless steel or specialty alloys

This structure creates a strong, corrosion-resistant, and self-cleaning intake barrier that controls what enters the system while maintaining stable water flow.

How Johnson Screens Improve Industrial Water Intake Protection

1. Non-Clogging V-Wire Slot

The V-wire profile naturally widens inward, allowing:

• Debris to stay outside

• Water to pass through freely

• Lower differential pressure

This reduces the need for manual cleaning and prevents sudden intake blockages.

2. Stable, Low-Velocity Water Entry

Many intake failures occur when water enters too quickly. Johnson-type screens promote low approach velocity, which:

• Protects pumps

• Reduces sediment pull-through

• Helps facilities meet environmental guidelines

3. High Structural Strength

Industrial intakes often operate under heavy hydraulic loads.

Wedge wire construction offers:

• Uniform welds

• Resistance to collapse

• Long-term stability in open-water environments

4. Corrosion Resistance for Harsh Conditions

Stainless steel 304, 316L, or duplex alloys ensure long service life in:

• Seawater

• Brackish water

• Chemical-rich industrial water

5. Compatibility with Fish Protection Requirements

Many water intake regulations require fish-friendly systems.

Johnson screens support compliance by enabling:

• Low intake velocity

• Smooth, non-injurious surface

• Reduced entrainment of aquatic life

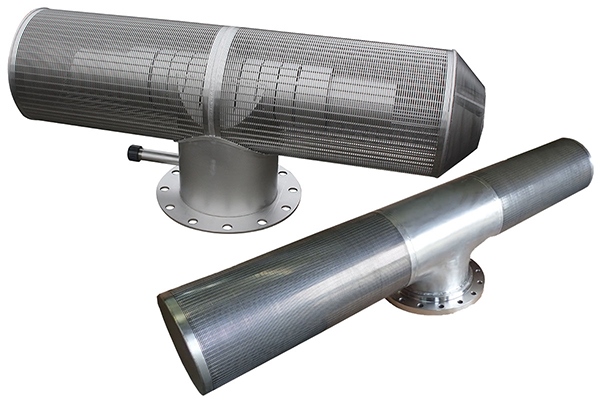

Common Industrial Applications of Johnson Intake Screens

• Power Generation

Used for cooling water intake and pump protection in thermal and nuclear plants.

• Desalination Plants

Installed at seawater intake stations to prevent clogging and protect RO equipment.

• Petrochemical Facilities

Ensure a debris-free process water supply and prevent downtime from pump failures.

• Mining & Mineral Processing

Filter river or dam water for slurry preparation and dust suppression systems.

• Municipal Water Supply

Improve raw water intake reliability for treatment facilities.

• Aquaculture & Irrigation

Protect delicate equipment from algae, leaves, and sediment.

Key Advantages of Johnson Type Water Intake Screens

Q&A: Important Questions Buyers Ask

Q1. What slot size is recommended for industrial intake systems?

Common industrial slot sizes range from 0.25 mm to 3.0 mm, depending on water quality, debris load, and intake velocity.

Q2. How long does a Johnson-type screen last?

With proper material selection (304/316L/duplex), screens can operate 10–20 years with minimal maintenance.

Q3. Can the screens be customized for different intake structures?

Yes. Cylindrical, panel, and passive intake configurations can be manufactured for varying depths, flow rates, and environmental conditions.

Q4. Are these screens suitable for seawater intake?

Yes. For seawater applications, 316L or duplex stainless steel is typically recommended to prevent corrosion.

Q5. Do Johnson-type screens reduce pump maintenance?

Yes. Cleaner intake water dramatically reduces wear on pumps, seals, and downstream filters.

Johnson-type screens offer a proven and dependable approach to industrial water intake protection. Their wedge wire structure, high mechanical strength, and corrosion resistance make them ideal for facilities that depend on stable water flow and minimal downtime.

By combining engineered slot geometry, low-velocity intake design, and long service life, they help industries operate safely, efficiently, and in compliance with environmental regulations.
