May. 28, 2025

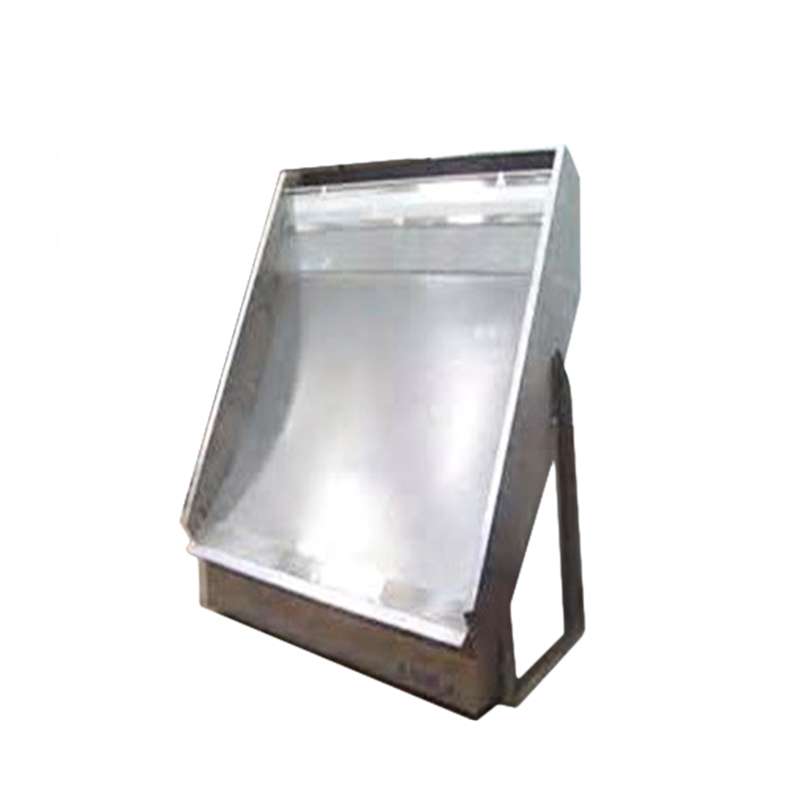

Sieve Bend Screens are custom-designed to separate solids from liquids in various applications, including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery. The gravity-fed Sieve Bend design provides for effective dewatering and allows the solids to slide off the end of the screen surface.
Unlike traditional flat screens, Sieve Bend Screens utilize a curved profile wire or wedge wire design, allowing for higher throughput, improved drainage, and reduced maintenance costs. Their gravity-fed operation ensures seamless separation, with solids sliding off the screen surface while liquids pass through efficiently.
The unique concave curvature of Sieve Bend Screens plays a crucial role in their efficiency. As slurry flows over the screen:
Centrifugal and gravitational forces push liquids through the openings.
Solids are retained on the surface and discharged at the bottom.
The Coanda effect further enhances drainage by directing liquid flow along the screen’s curve.
This design ensures higher capacity compared to flat screens, reducing clogging and improving longevity.
Sieve Bend Screens are constructed using:
Wedge wire panels: Durable, corrosion-resistant, and customizable for different slot sizes.
Stainless steel or special alloys: For extended wear life in abrasive environments.
Reinforced end bars: For structural stability and easy installation.
The perpendicular alignment of screen openings to the flow direction maximizes separation efficiency.
Higher fine fiber recovery (critical for paper recycling).
Effective removal of abrasive solids (sand, glass, plastics, foundry slag).
Optimized curvature prevents blockages, ensuring continuous operation.
Low maintenance requirements due to self-cleaning action.
Tailored slot sizes for specific separation needs.
Special alloys (e.g., 304L, 316L, duplex steel) for corrosive or high-wear applications.
Surface treatments (e.g., polishing, coatings) to enhance durability.
Reduces water consumption by improving liquid recovery.
Minimizes waste disposal costs through efficient solids capture.
Municipal & industrial plants use Sieve Bends for:
Grit removal (sand, gravel).
Primary screening before biological treatment.
Sludge dewatering to reduce disposal volumes.
Corn wet milling: Starch and gluten separation.
Meat processing: Byproduct recovery and wastewater filtration.
Dairy & brewing: Solids removal from process water.
Fiber recovery from broke pulp.
Rejects screening in recycling plants.
Coal washing: Removing fine particles from slurry.
Gold & mineral recovery: Concentrating ore slurries.
Prevents debris from entering cooling systems in power plants.
1. Slot Size Selection
Fine separation (0.1mm - 0.5mm): For fiber and micro-solids.
Medium (0.5mm - 1.5mm): General wastewater screening.
Coarse (1.5mm - 3mm+): For heavy solids like gravel.
2. Material Considerations
304 Stainless Steel: Standard corrosion resistance.
316 Stainless Steel: For high-chloride environments.
Duplex Steel: Extreme abrasion resistance.
3. Installation & Maintenance Tips
Optimal feed distribution ensures even wear.
Regular inspection prevents unexpected failures.
Pressure washing can extend screen life.
With decades of expertise in static dewatering technology, we provide:
Custom-engineered screens for unique challenges.
Fast lead times & global supply chain support.
Technical assistance for optimal performance.
Whether you're in wastewater treatment, food processing, mining, or pulp & paper, Sieve Bend Screens offer a durable, efficient, and cost-effective solution for solid-liquid separation. By leveraging advanced wedge wire technology, gravity-fed operation, and customizable designs, industries can achieve higher productivity, reduced waste, and lower operational costs.
Contact our team today to discuss how our Sieve Bend solutions can optimize your process!
86-18032153916
Q: What is the typical lifespan of a Sieve Bend Screen?
A: Depending on material and application, screens last 2-10 years with proper maintenance.
Q: Can Sieve Bends handle high-temperature slurries?
A: Yes, heat-resistant alloys are available for extreme conditions.
Q: Are custom shapes available?

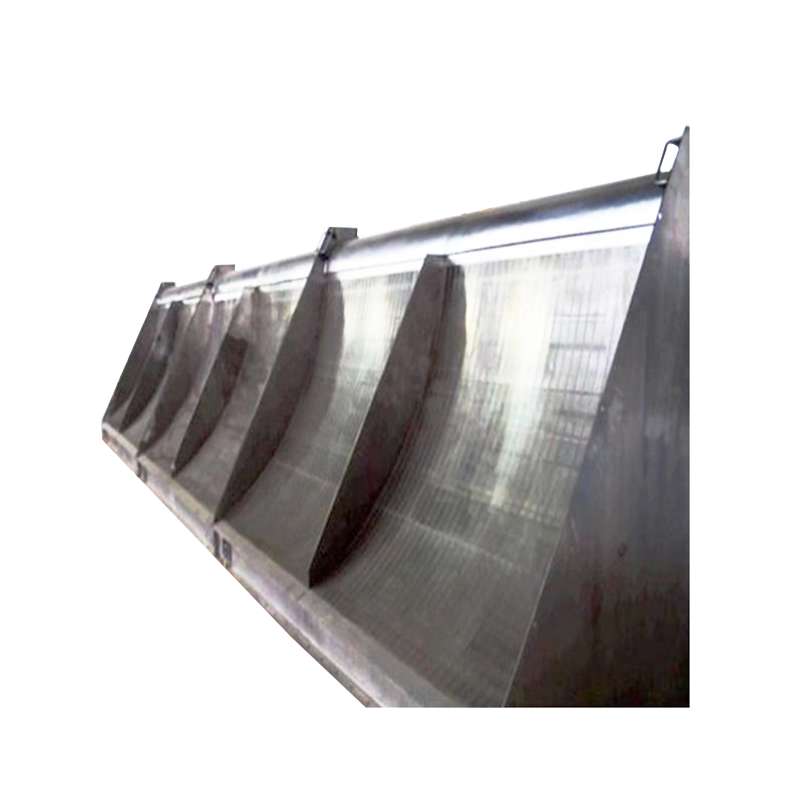

A: Absolutely—we design radius bends, multi-panel units, and hybrid configurations.
Q: How do I prevent screen clogging?
A: Proper feed distribution, regular cleaning, and optimal slot sizing minimize blockages.
