Why Profile Wire Screens Are Revolutionizing Filtration?

Filtering efficiency is crucial across countless industries. Whether you're dealing with water intake, chemical processing, or food production, clogged filters mean downtime, lost productivity, and increased operational costs. But what if there was a smarter, more durable solution?

Enter the Profile Wire Screen, also widely known as the V-Wire Screen or Wedge Wire Screen.

This isn't your average wire mesh.

What is a Profile Wire Screen?

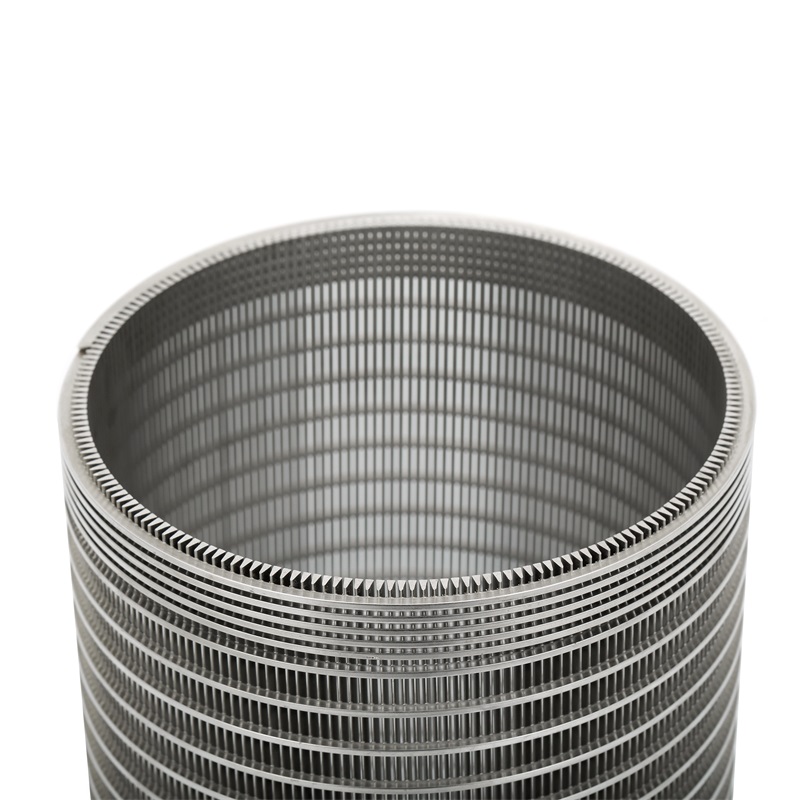

Profile Wire Screen, as the name suggests, the profile wire screen, also called V wire screen, is made by resistance welding V-shaped metal wire to the support rod; it has a smoother surface. From a structural point of view, this enables the V-wire screen to prevent clogging and make it stronger.

Therefore, the profile wire screen has higher strength and durability than traditional wire mesh, porous plate, or filter cloth filters.

According to the use environment and materials, it can be used for almost the entire life without replacement, thereby reducing operating costs.

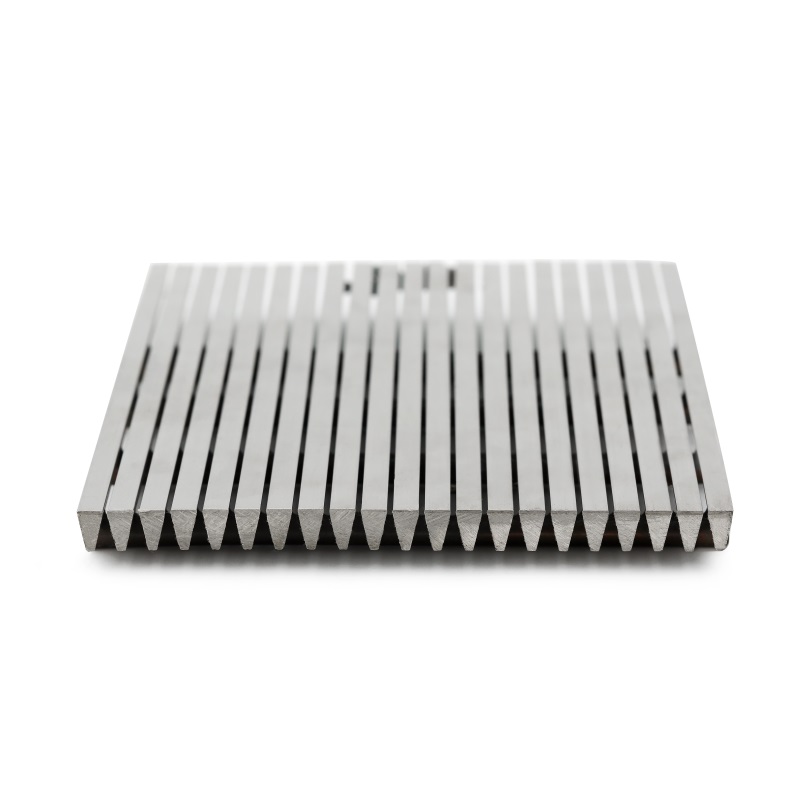

The magic lies in the "V" shape. Unlike traditional square or round mesh openings, the V-shape creates a narrow slot on the outer surface and a widening passage inwardly. This ingenious design is the key to many of its advantages.

Why are engineers and operators increasingly specifying profile wire screens?

The benefits are clear and compelling:

1. The Ultimate Non-Clogging Solution: That "V" shape isn't just for looks. As particles approach the screen, they only make point contact with the slot edges. If a particle is small enough to pass the outer slot, the widening V-shape ensures it flows through freely without getting wedged. This drastically reduces blinding and clogging, ensuring uninterrupted flow and consistent performance.

2. Maximum Flow, Maximum Efficiency: Profile wire screens boast a continuous slot opening. This design significantly increases the total open area compared to perforated plates or conventional mesh with the same aperture size. More open area means greater capacity, lower pressure drop, and more efficient access to whatever you're filtering (like water in a well screen application).

3. Built Tough for Longevity: The resistance welding process creates an incredibly strong, integral structure. Unlike woven mesh that can fray or separate, V-wire screens maintain their integrity even under high pressure and demanding conditions. Constructed often from high-quality stainless steel grades (like 304, 316, and 316L), they offer excellent corrosion resistance and durability. For many applications, this means a lifespan potentially covering the entire equipment life, slashing replacement costs.

4. Precision Filtration: The manufacturing process allows for highly accurate and consistent slot dimensions. This ensures reliable particle retention and predictable filtration performance, critical for applications like retaining expensive catalysts or ion exchange resins.

5. Easy Maintenance & Lower Costs: The smooth surface and anti-clogging nature make backwashing incredibly effective. Less frequent and easier cleaning translates directly to reduced downtime and lower maintenance expenses. Combined with their exceptional lifespan, V-wire screens deliver a significantly lower total cost of ownership.

Where are Profile Wire Screens Making a Difference?

The versatility of V-wire screens means they excel in a vast range of applications:

Water Intake Screens: Filtering river, lake, or seawater reliably.

Well Screens: Maximizing water flow from aquifers.

Industrial Filtration: Components in centrifuges, dehydrators, vibrating screens, and various filtration systems.

Media Retention: Securely holding activated carbon, ion exchange resins, catalysts, and other filter media.

Food & Beverage Processing: Ensuring purity and preventing solids carryover.

Pulp & Paper, Mining, Petrochemical: Numerous applications requiring robust solid-liquid separation.

Upgrade Your Filtration with V-Wire

If you're battling inefficient filtration, frequent clogging, or high maintenance costs, it's time to explore the benefits of profile wire screens. Their unique V-shaped design, robust construction, high open area, and long lifespan offer a superior solution for countless industrial challenges.
