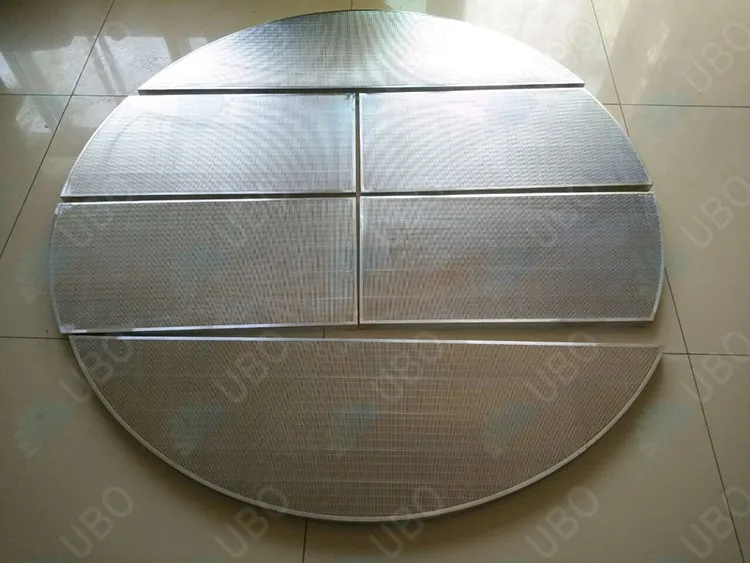

Description of Wire wrapped sieve plate screen wedge welded wire lauter tun screen:
The wire wrapped sieve plate screen wedge welded wire lauter tun screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine, then be made to screen panel through cutting and edge welding. Each profile wire and support rod is welded by resistance welding. It generally made of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.
The wire wrapped sieve plate screen wedge welded wire lauter tun screen are the most commonly using screen for filtration and separation in liquid/gas, water wasting, mining, food and so on. We have flat type, cylinder type, basket type and slope type according to the screen type. These products also can be called flat welded screen panel, cylinder wedge screen and sieve bend screen.

Features of the wire wrapped sieve plate screen wedge welded wire lauter tun screen
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Advantage of the wire wrapped sieve plate screen wedge welded wire lauter tun screen
1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits

Specifications of Wire wrapped sieve plate screen wedge welded wire lauter tun screen:
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
|
Note: other specifications available as per request
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
Diameter
|
from 25mm to 1200mm.
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
Wire wrapped sieve plate screen wedge welded wire lauter tun screen' Production And Sales:
YUBO is specialized in producing filter elements and wedge wire screen products. We have
10 years OEM ,ODM, and filters design experience.

Wedge Wire Screen Production Process:
